1F 2F 4F 6F 8F FTTH Access Point Outlet kits

Product Name : FTTH Access Point(AP) Outlet Kits

Fiber Count : 1-8 Fibers

Kits Dimension : 31x6cm

Operating Temperature Range(°C) : -40°C ~+70°C

Inquiry Now Download

Description

Leave a message to let us serve you better

FTTH Access Point(AP) Outlet Kits

FTTH Access Point Outlet Kits

FTTH AP Outlet Kits included A Fiber faceplate,A FTTH drop pigtail/Patch cord, A paper drum suit.

It assembled with FTTH Drop indoor cable（flat or round）/ FTTH Aerial Self-support Drop cable for installation in flush-mounted box and cable entry to the BEP (Building entry point) cable side BEP smooth cut for splicing. Packed in single carton.

The installer just need Only one fiber splicing or one connector insertion to BEP(building entry point) cable, So it is the fastest and the most labor cost-efficient solution in FTTH projects. The user can get high speed opical network easily.

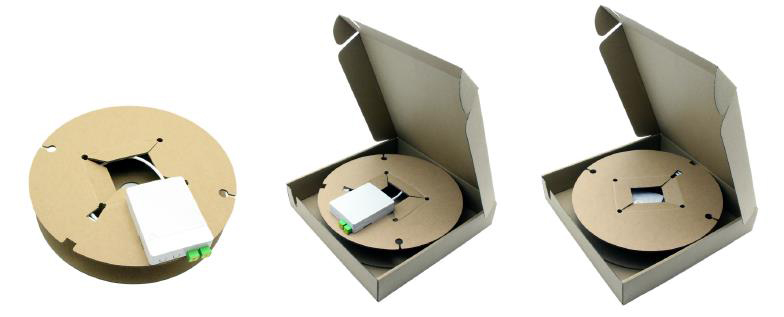

Products Details - Paper Drum + Package Carton:

Products details– Paper Drum-package Carton

Products details– Cable:

1,Butterfly Flat FTTH Drop indoor cable Available for

G657A1,G657A2/B2,G657B3,
1-8 Fibers
Black or White LSZH,Anti-UV

product cable detail 1

Technical Data:

Fiber Count	1F	2F/4F	6-8F
Strength member	FRP/KFRP/ Solid Steel wire
Strength member	0.45-0.52mm	0.45-0.52mm	0.45-0.52mm
Cable diameter(mm) Approx.	2.0(±0.1)*3.0(±0.2)	2.0(±0.1)*3.0(±0.2)	2.0(±0.1)*4.0(±0.2)
Tensile Strength Short/ Long Term (N)	200/100 for steel wire strength member 80/40 for KFRP wire strength member
Crush resistance short/long term (N/100mm)	1000/500
Operating temperature range(°C)	-40°C ~+70°C

2,Aerial Self-support FTTH Drop cable Available for

G657A1,G657A2/B2,G657B3,
1-8 Fibers
Black or Grey LSZH ，Anti-UV

product cable detail 3 product cable detail 2

Technical Data:

Fiber Count	1F	2F	4F	6F	8F
Self-supporting Strength member	Solid Steel wire/ Stranded Steel wire
Self-supporting Strength member	1.0mm				1.2mm
Strength member	FRP/KFRP/Solid Steel wire
Strength member	0.45-0.52mm				0.45-0.52mm
Cable diameter(mm) Approx. (±0.1)	2.0*5.0	2.0*5.0	2.0*5.2	2.3*6.0	2.8*6.3
Cable weight(kg/km) Approx	18.5/20	19/20.5	20/21.5	21/22.5	34/35
Tensile Strength Short/ Long Term(N)	600/300	600/300	650/350	800/400	800/400
Crush resistance short/long term (N/100mm)	2000/1000	2000/1000	2000/1000	2200/1000	2200/1000
Operating temperature range(°C)	-40°C ~+70°C

3, Multi core Round indoor/Outdoor cable Available for

G657A1,G657A2/B2,G657B3
1-4 Fibers
Black or White

product cable detail 4

Technical Data:

product cable detail 6

4, Central Loose tube round cable Available for

G657A1,G657A2/B2,G657B3
1-8 Fibers
Black or White

product cable detail 5

Technical Data:

product cable detail 7

Products details– Fiber Face plate:

Fiber socket : FS-2D

Water-proof design with IP-45 Protection level.
Integrated with cable termination and management rods
industrial anti-aging ABS plastic material.High quality Manage fibers in a reasonable fiber radius(30mm) condition.
Suitable for the wall mounted installation. Suitable for FTTH indoor application.
2/4 port cable entrance for drop cable or patch cable.
Fiber adapter can be installed in the rosette for patching.
UL94-V0 fire-retardant material can be customized as option.

product cable detail 8

Part NO	Material	Size	Max Capacity		Mounting Way	Package	Color
FS-2D	Industrial ABS	LWH(mm) 1058324	SC Simplex 2 Cores	LC Duplex 4 Cores	Wall Mounting or in- side FTTH media box application	PE bag+Kraft box or OEM	White
