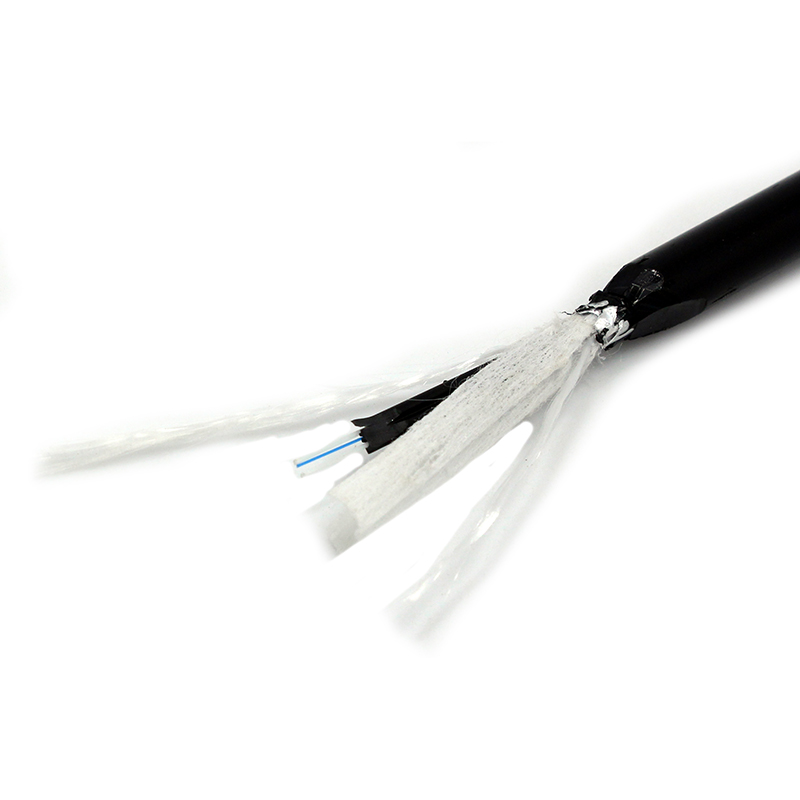

FTTH Drop Cable 1 - 4 Cores Singlemode Armored Outdoor Cable

Product Name : 1-4 Cores Single-armored FTTH Drop Cable

Fiber Count : 1,2,4F

Operating temperature : -40°C ~+70°C

Inquiry Now Download

Description

FTTH Drop Cable

omc ftth drop cable

FTTH drop cables are made for connecting user's devices with outdoor feeder cable, especially suitable for duct installation. The optical fiber unit is located in the center. The two parallel FRP strength members improve the tensile strength. With the LSZH (LSZH, Low smoke, Zero halogen) material jacket, this cable has good flame retardant performance. Water blocking tape & AL-plastic tape provide good water proof ability. Flame-retardant, FRP Strength Member, Double-Jacket Armored Cable can be used in aerial and duct access cabling in FTTH

Feature:

Soft and flexible, good bending performance

Water-proof tape prevent the ingression of water into the cable

AL-plastic tape makes the cable crush resistant and moisture proof

FRP strength member improves the tensile strength, LSZH flame-retardant inner and outer jacket has good flame-retardant performance

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

Simple structure, light weight and high practicability

Novel flute design, easily strip and splice, simplify the installation and maintenance

Fiber Count	1F	2F	4F
Strength member 1	FRP/KFRP
	0.5mm
Strength member 2	FRP/KFRP/Solid Steel wire
	0.5mm	0.5mm	0.5mm
Cable diameter(mm) Approx.	7.0±0.4mm	7.0±0.4mm	7.0±0.4mm
Cable weight(kg/km) Approx	40	40	40
Tensile Strength Short/ Long Term(N)	1000/500
Crush resistance short/long term (N/100mm)	1000/500
Operating temperature range(°C)	-40°C ~+70°C

Items	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical data	Additional attenuation: ≤0.4dB after test
Crush	IEC 60794-1-2-E3	See Technical data	Additional attenuation: ≤0.4dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 10Nm, one in 3 different places	Additional attenuation: ≤0.4dB after test
Repeated Bending	IEC 60794-1-2-E6	R=30H	Additional attenuation: ≤0.4dB after test
Temperature Cycling	IEC 60794-1-2-F1	-40°C ~+70°C	Attenuation change: ≤0.4dB/km after test

Application:

Used in aerial and duct access cabling

Can be installed in small bending environment

Suitable for the connection between indoor and outdoor

Specially used where good insulation performance are expected

Ideal Solution For FTTH Drop Cable Use

With low smoke, zero halogen and flame retardant inner and outer jacket, this cable can be especially used in aerial and duct access cabling, suitable for the connection between indoor and outdoor. It can also be directly terminated connecting to communication equipment.

omc ftth drop cable 1
