19' ODF Unit Panel 12 Cores

12F ODF Panel & Unit

Generally, the ODF unit box is a necessary part of the indoor optical distribution frame. 12 cores fusion splicing and distribution module plays the main role and its function is splicing, fiber storage and protection. A completed ODF unit will be with adapter, pigtail and accessories like splice protection sleeve, nylon tie, snake like tube, screw.

Products Details - 12F

Match Modular 12F splice and storage tray

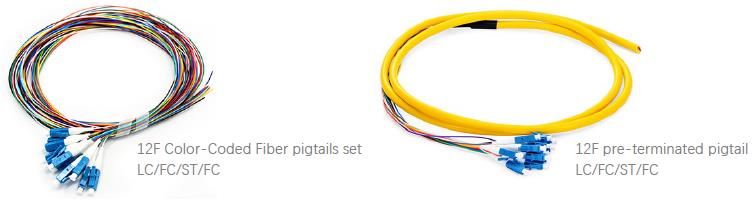

Match Pigtail

Match Adapter

Another Accessories

60mm Splice Sleeve/Smouv

Features:

19’ standard mounting, available for all kinds of rack and cabinet.
Metal, static electric plastic sprayed. Neat appearance, reasonable structure. With cable fixed and protection function; With functions of fiber optic cable terminating;
All are designed as modules; all operation could be done at the front side of the box. Flexible installation. Convenient for operation and maintenance.
Designed as a drawer. This could be pulled out and pushed easily. A unit with splice and distribution integrated.
Suitable for both ribbon and bunch fiber cables.
Each splice trays can be clamped with 12FC, SC, ST, LC(Duplex) adapters/30° oblique installation, preventing eyes form harm of laser and ensuring the fiber bending radius.
Operation and storage temperature: -25℃ - +55℃
Dielectric intensity: ≥3KV（DC)/1minNo breakdown, no arcing Insulation Resistance: ≥1000M&/500V(DC)
Shelter plate of fiber bending radius≥40mm

Application:

FTTX project, Data center
