Fiber Distritbution Box 4 Cores IP - 55 SC Connector PLC Splitter FDB - 104C - 2

Product Name : 4 Cores Fiber Distribution Box

Material : PC+ABS

Size(L*W*H) : 210*140*40 mm

Max Capacity : Splice 4/8 Fibers;PLC Splitter 1pcs of 1x4(SC)

Numbers of Adapter : 4 pcs SC/UPC or SC/APC

Weight : 0.9kgs

Color : Light Grey

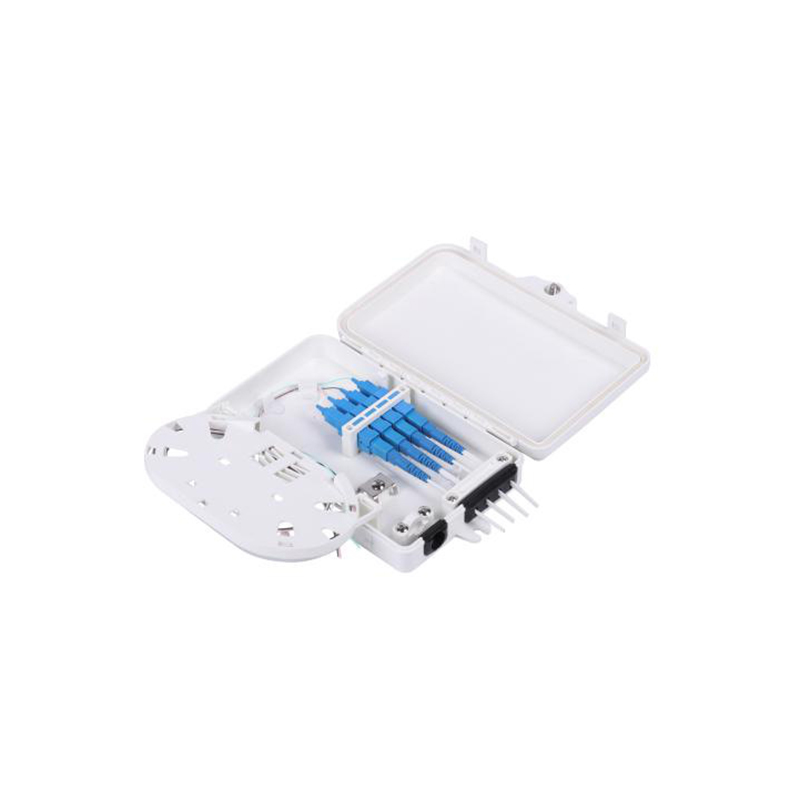

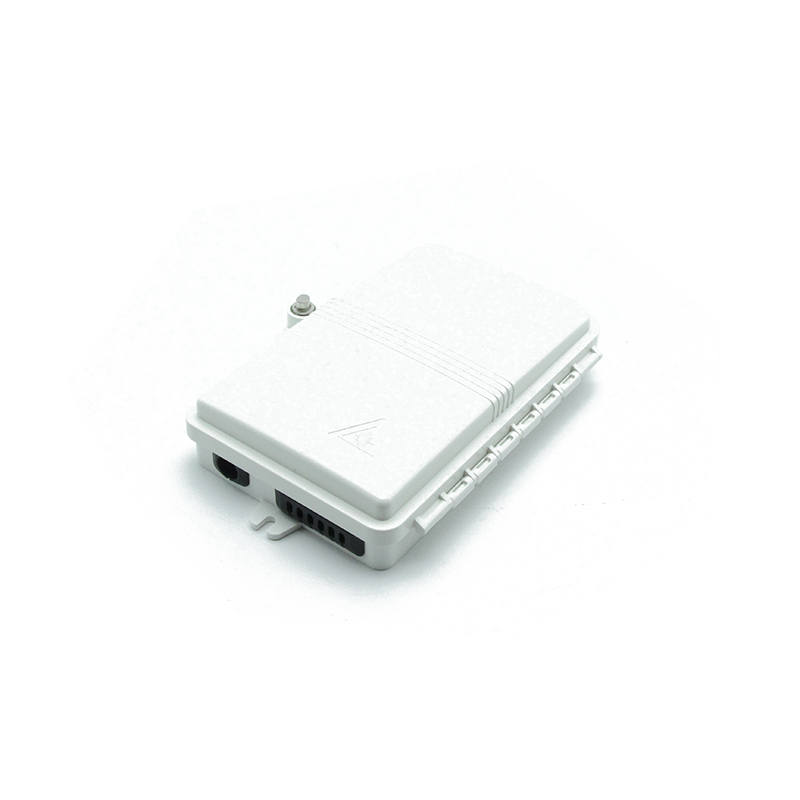

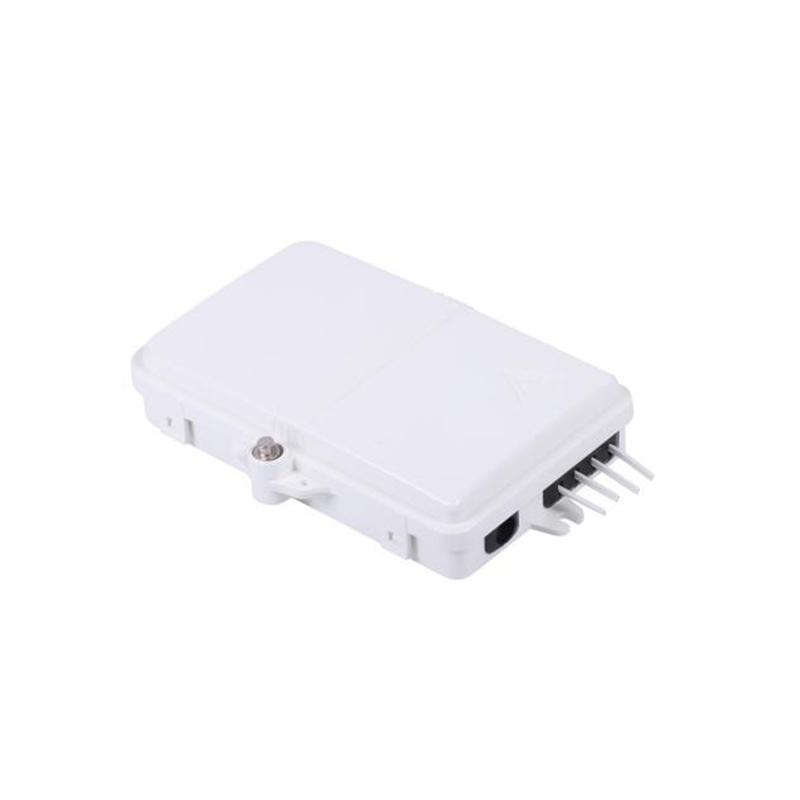

Fiber Distribution box 4 cores FDB-104C-2



Fiber Distribution box (FDB), known as optical Distribution box (ODB) as well, is a compact fiber management product of small size. It is widely adopted in FTTx cabling for both fiber cabling , provides the connection between fiber optic cables and passive optical splitters .


Fiber Distribution box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.


A insulation is always demanded between cable metal components and cable Distribution box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber Distribution box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.



Working Environmental conditions:


1. Working temperature:-40°C+60°C;
2. Relative humidity: ≤93%(at +40°C);
3. Atmospheric pressure:62kpa~101kpa(Approximate elevation 0~5000m);
4. Insert Loss:≤0.35dB;
5. Return Loss:≥50 dB;
6. Plug durability:>1000 times;
7. Insulation resistance:≥1000MΩ/500v(DC);
8 Grounding resistance : >3000V (DC)/1min without breakdown, flashover



OMC's FDB Family



OMC mainly offer The wall mount fiber Distribution boxes are designed for either pre-connectorized cables, field installation of connectors, or field splicing of pigtails. They offer an ideal solution for building entrance terminals, telecommunication closets, main cross-connects, computer rooms and other controlled environments.



Specification:



Model

FDB-104C-2

Adapter

4pcs of SC Simplex /4pcs of LC Duplex

Cable Ports

1

Applicable cable OD

5-10mm

Box Dimensions(mm)

A 186mm x B 116mm x C 40mm

Material

ABS/ABS+PC

Max capacity(F)

8

Installation method

Rack mount and pole mount



Features:



Water-proof design with IP-55 Protection level
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1x2/1x4 Splitter can be installed as an option.
Efficient cable management.
Entrance cable OD:7-10mm
Distribution cable of 4 ports for 2-4mm drop cable.
Wall Mount Install
