ABS Module PLC Splitter 0.9mm, 1.6mm, 1.8mm, 2.0mm, Singlemode SC APC / UPC

Product Name : ABS Module Fiber PLC Splitter

Fiber Type : G657A1

Pigtail Cable : 900μm/1.6mm/1.8mm/2.0mm

Operation Wavelength : 1260~1650nm

Directivity : ≥55dB

Return Loss : APC≥60dB,UPC≥50dB;PC≥45dB

Operating Temperature : -40～+85℃

Inquiry Now Download

Description

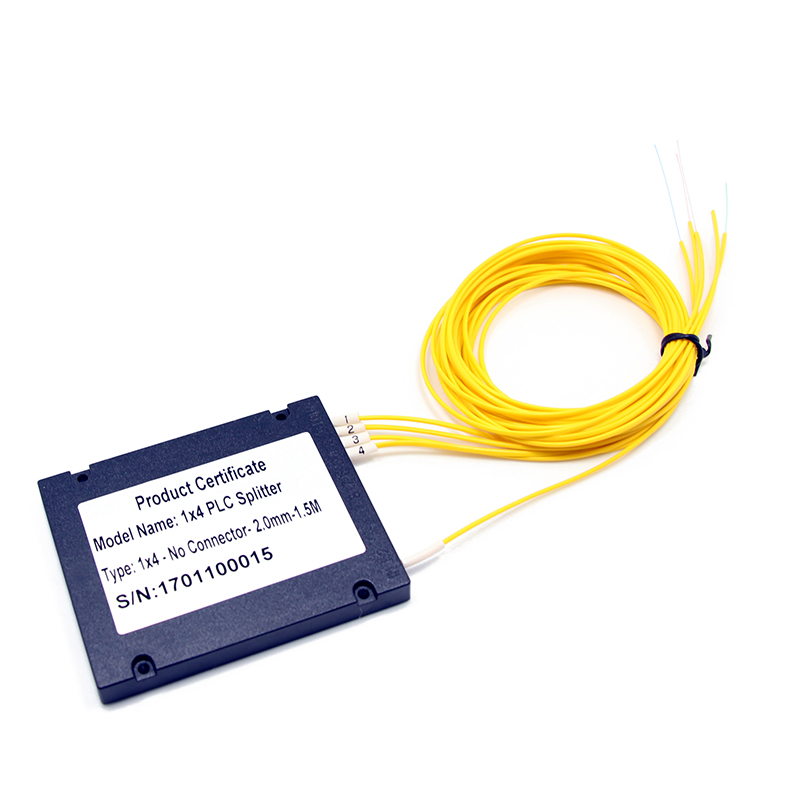

1x2,1x4,1x8,1x12,1x16,1x32 ABS Module SC APC/UPC Singlemode Fiber PLC Splitter

Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

OMC ‘s ABS Cassette PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.

ABS Module PLC Splitter Specification

Parameter	Unit	Specification (P Grade)
Operation Wavelength	nm	1260～1650
Channel Number		1X2	1X4	1X8	1X16	1X32	1X64
Insertion Loss with Connector (Max)	dB	4.1/4.4	7.4/7.9	10.5/11.0	13.8/14.1	17.1/17.4	20.4/21.0
Insertion Loss without Connector (Max)	dB	3.8/4.1	7.1/7.6	10.2/10.7	13.5/13.8	16.8/17.1	20.1/20.7
Uniformity (Max.)	dB	0.6	0. 7	0.8	1.0	1.5	2.0
Polarization Dependent Loss	dB	0.2	0.2	0.2	0.3	0.3	0.3
Return Loss	dB	≥45（PC）；50（UPC）；60（APC）
Directivity	dB	≥55

Parameter	Unit	Specification (P Grade)
Operation Wavelength	nm	1260～1650
Channel Number		2X2	2X4	2X8	2X16	2X32	2X64
Insertion Loss with Connector (Max)	dB	4.4/4.6	7.7/8.1	10.8/11.3	14.1/14.4	17.4/17.7	20.6/21.3
Insertion Loss without Connector (Max)	dB	4.1/4.3	7.4/7.8	10.5/11	13.8/14.1	17.1/17.4	20.3/21.0
Uniformity (Max.)	dB	0.6	0. 7	0.8	1.0	1.5	2.0
Polarization Dependent Loss	dB	0.2	0.2	0.2	0.3	0.3	0.5
Return Loss	dB	≥45（PC）；50（UPC）；60（APC）
Directivity	dB	≥55

Environmental Conditions:Environmental Conditions:

Operating Temperature	℃	-40～+85
Storage Temperature	℃	-40～+85
Operating Humidity	%RH	≤93
Storage Humidity	%RH	≤93

Dimension (mm)

Splitter	1X2	1X4	1X8	1X16	1X32	1X64
Cassette size	100×80×10	100×80×10	100×80×10	120x80x18	120x80x18	140×114×18
Splitter	2X2	2X4	2X8	2X16	2X32	2X64
Cassette size	100×80×10	100×80×10	100×80×10	120x80x18	120x80x18	140×114×18

Cable Infor

Fiber type	G657A1
Loose Tube	900um,1.6mm,1.8mm,2.0mm
Connector	SC, LC,FC,ST,…….
2xN Splitter	Only Single Chip

Application

omc-abs-module-plc-splitter-application-2

Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.

omc-abs-module-plc-splitter-application-1
