FTTH Vertical Type Splice 288 Cores Fiber Splice Closure GP03 - M5 - D - 288

Waterproof Vertical Type Splice 288 Cores FTTH Fiber Splice Closure GP03 - M5 - D - 288

Fiber closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings. It can provide protection for the fiber joint and the fiber cables since they have excellent mechanical strength and strong out shell, which ensures the joints are not damaged by the hostile environment.

Types of Fiber Splice Closure

No matter the size, types, and configuration of your network, protecting the connectivity is what counts. According to different applications, there are various types of fiber optic closures in the market for users to choose from and help them protect their networks.

Vertical Type Fiber Splice Closure

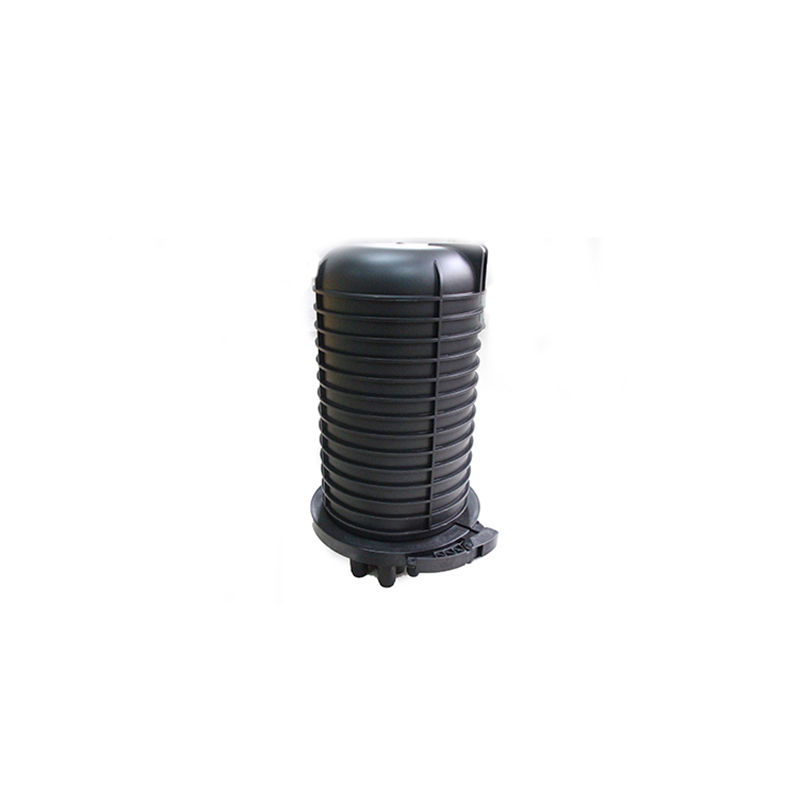

Vertical fiber optic closure looks like a dome, thus it is also called dome fiber optic splice closure or fiber dome closure.It usually contains one or more fiber splice trays assembled to hold/protect optical fiber splices. The common fiber counts of per splice tray are 6, 12,16 and 24 fibers. So one fiber closure’s splice capacity could cover a range of 6-672 Fibers Totally.

Horizontal Type Fiber Splice Closure

Horizontal type fiber closure has a flat or cylindrical outer housing to provide space and protection for fiber optic splices. It usually contains one or more fiber splice trays assembled to hold/protect optical fiber splices. The common fiber counts of per splice tray are 6, 12 and 24 fibers. So one fiber closure’s splice capacity could cover a range of 6-288Fibers Totally.

Specification :

Fiber Splice Closure VERTICAL TYPE: GP03-M5-D-288

Features:

Heat-Shrinkable sealing structure
High quality industrial plastic body material

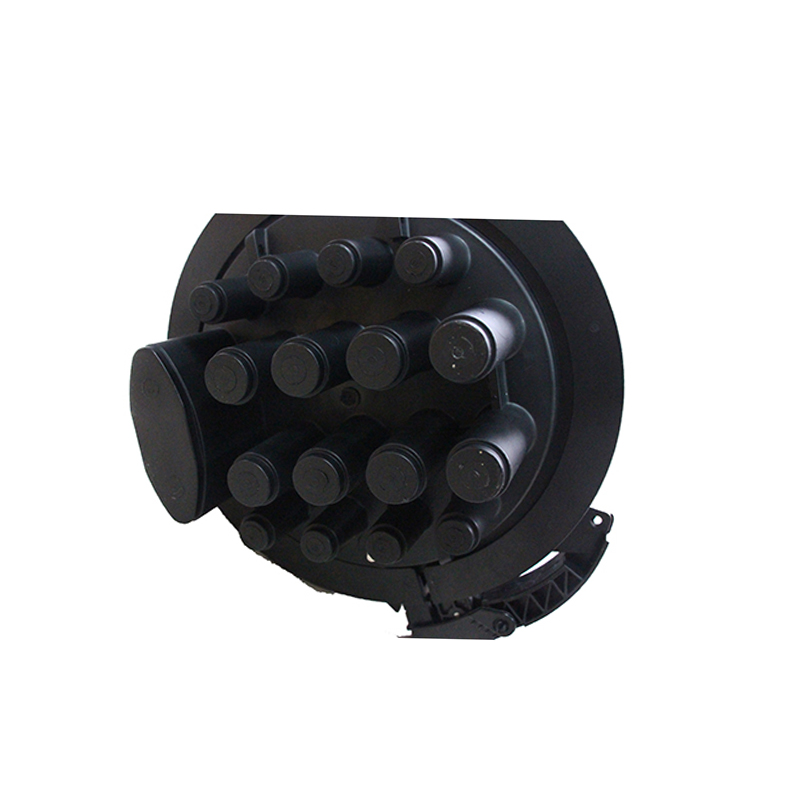

1 oval hole and 16 round holes for cable entrance
Suitable for cable diameter 5mm-30mm
Support aerial,underground,pipeline,man holes,hand holes
Protection level reaches IP68
360 degrees access, fiber bending > 40mm
Maximum capacity: 288 fibers.
Number of splice trays: 24pcs x 12F
