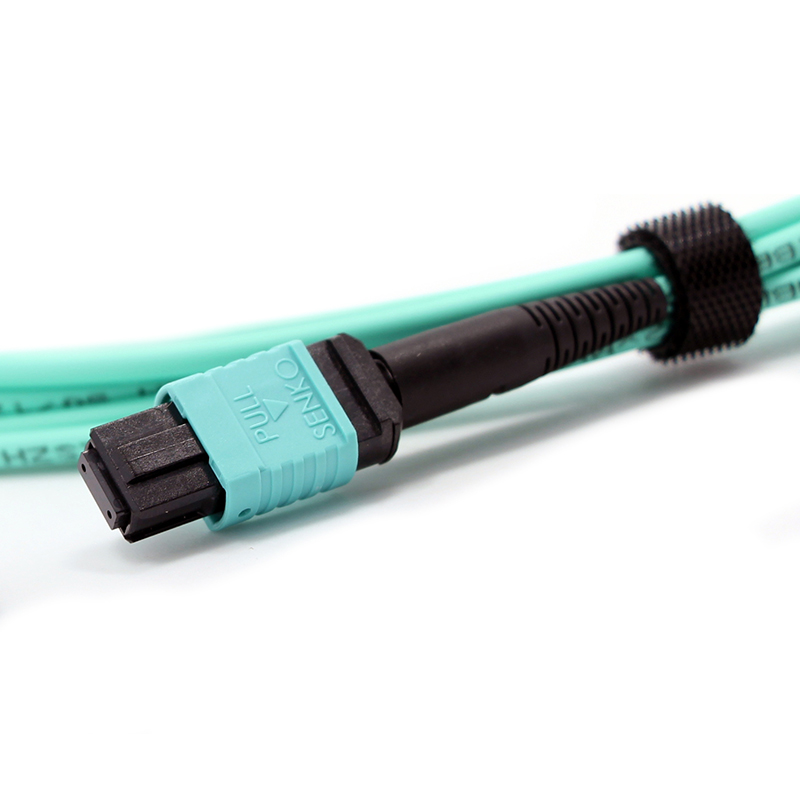

MPO to MPO Female OM3 3.0mm LSZH 12 Fibers MPO Trunk Cable Custom Meters

Product Name : 12F MPO - MPO Trunk Cable

Insertion Loss : ≤0.35dB

Return Loss : ≥25dB

Operating Temperature : -40 to + 85°C

MPO to MPO Female OM3 12 Fibers MPO Trunk Cable Custom Meters

12F MPO(Female)-MPO(Female) 3.0mm LSZH Patch Cable/Trunk Cable. MPO Fiber Patch cable/trunk cable is terminated with MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.



All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.
1. The Data Center application with high dense degree environment
2. The optical fiber to the building
3. The internal connector application in fiber equipment.



MPO Connector Types:



Connector

Fiber Channel

 MPO Female Connectors 1

 MPO Female Connectors 2

MPO Female Connectors

12 Fibers

Note: Female connector need to connect with male connector type.



OM3 12 Fibers MPO Trunk Cable Specification:



Spec items.

Single mode (APC 8-degree polished)

Multimode (PC Flat polish)

Insertion loss (MPO)

(IEC 61300-3-34)

Standard loss:≤0.75dB(max), ≤0.35dB(Typical)

Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)

Standard loss:≤0.6dB(max), ≤0.35(Typical)

Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)

Return loss(MPO)

≥60dB(8degree polishing)

≥25dB

Durability

<0.3dBtypical change, 200 matings

Interchangeability

≤0.2dB

Tensile strength

>70N

Operating Temperature

-40 to + 85°C



12F OM3 MPO to MPO Trunk Cable



OM3 12 Fibers MPO Trunk Cable Drawing:



MPO-MPO 12F Trunk Cable Drawing



Overall Length(L)(m) length of tolerance(cm)

0<L<1

+5/-0

1<L<10

+10/-0

10<L<40

+15/-0

40<L

+0.5% x L/-0



OM3 12 Fibers MPO Trunk Cable Features:



Low insertion loss, high return loss

MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies

Economical solution for mass-termination of fiber

Designed for low loss and standard loss SM and MM applications

Ruggedized round cable, oval cable and bare ribbon options available

Color coded housings available to differentiate fiber type, polish type and/or connector grade

Good in repeatability and exchangeability
