MTP to MTP Female OM4 12F MTP Trunk Cable 3.0mm LSZH Custom Meters

Product Name : 12F OM4 MTP Trunk Cable

Insertion Loss : ≤0.35dB

Return Loss : ≥25dB

Durability : <0.3dBtypical change, 200 matings

Interchangeability : ≤0.2dB

Tensile strength : >70N

Operating Temperature : -40 to + 85°C

MTP to MTP Female OM4 12F MTP Trunk Cable



MTP Fiber Patch cable/trunk cable is terminated with MTP connector on both ends. MTP trunk cable/Patch cables connect MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24,48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to inter- connect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.



The 12F MTP-MTP trunk cable/Patch cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center.



12F MTP Trunk Cable 1



MTP to MTP Female OM4 12F MTP Trunk Cable Products Materials:



Connector

Reference

Housing Details

MTP Singlemode

IEC 61754-7

SM APC: Green connectors+black boot (Standard Loss MTP)

SM APC: Yellow connectors+black boot (Elite MTP)

MTP Multimode

IEC

61754-7

OM3&OM4 PC: Aqua connectors+black boot (Standard Loss&Elite MTP)



Connector

Fiber Channel

12F MTP Trunk Cable 2

12F MTP Trunk Cable 3

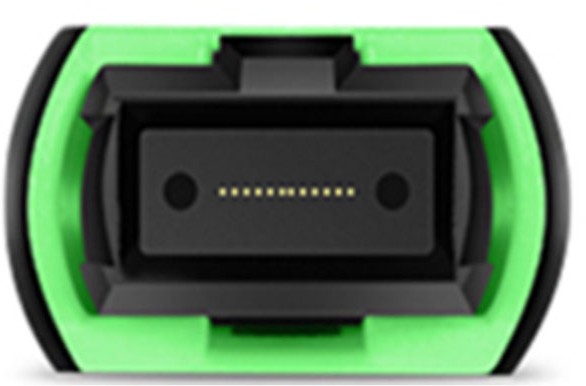

MTP Connectors

12 Fibers

12F MTP Trunk Cable 4

Note: Female connector need to connect with male connector type.



Cable Parameters-12F Microfiber cable



12F MTP Trunk Cable 512F MTP Trunk Cable 6



Fiber Count

OD(mm)

Minimum allowable

Tensile Strength (N)

minimum allowable

Crush Load(N/100mm)

Minimum Bending

Radius(MM)

12

3.0±0.15

Short-term: 180; Long-term: 90

Short-term: 500; Long-term: 150

Static:10D Dynamic:20D



MTP to MTP Female OM4 12F MTP Trunk Cable Specifications:



Spec items.

Single mode (APC 8-degree polished)

Multimode (PC Flat polish)

Insertion loss (MTP (IEC 61300-3-34)

Standard loss:≤0.75dB(max), ≤0.50dB(Typical) Elite loss:≤0.35dB(max), ≤0.20dB(Typical)

Standard loss:≤0.6dB(max), ≤0.50(Typical) Elite Low loss:≤0.35dB(max) , ≤0.20dB(Typical)

Return loss(MTP)

≥60dB(8degree polishing)

≥25dB

Durability

<0.3dBtypical change, 200 matings

Interchangeability

≤0.2dB

Tensile strength

>70N

Operating Temperature

-40 to + 85°C



MTP End-Face 3D Interference Index



Item (IEC-61300-3-30)

Minimum

Maximum

Radius of curvature (mm)

ROC-X(ABS)

2000

\

ROC-Y(ABS)

50mm

\



Angle

Angle-X

-0.2°

-0.2°

Angle-Y

APC

7.85°

8.15°

PC

-0.2°

-0.2°

Fiber height (nm)

1000nm

3500nm

Max.DH.All Fiber:

-300nm

300nm

DH.Adj:

-300nm

300nm

DH.Ave Fiber:

-300nm

300nm

Core Dip:

SM

N/A

N/A

MM

-200nm

300nm



MTP to MTP Female OM4 12F MTP Trunk Cable Drawing.



12F MTP Trunk Cable 7



Overall Length(L)(m) length of tolerance(cm)

0<L<1

+5/-0

1<L<10

+10/-0

10<L<40

+15/-0

40<L

+0.5% x L/-0



MTP to MTP Female OM4 12F MTP Trunk Cable Features:


Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade Good in repeatability and exchangeability



MTP to MTP Female OM4 12F MTP Trunk Cable Application:


All of OMC’s MTP Connectors are from USCONEC. MTP Patch cable/trunk cable is a kind of high density cable assem- blies which is generally use in three areas.
1, The Data Center application with high dense degree environment 2, The optical fiber to the building
3, The internal connector application in fiber equipment.
