MPO to MPO Female Singlemode 48 Cores Singlemode MPO Trunk Cable

Product Name : 48F Singlemode MPO Trunk Cable

Insertion Loss : ≤0.35dB

Return Loss : ≥25dB

Durability : <0.3dBtypical change, 200 matings

Interchangeability : ≤0.2dB

Tensile strength : >70N

Operating Temperature : -40 to + 85°C

Inquiry Now Download

Description

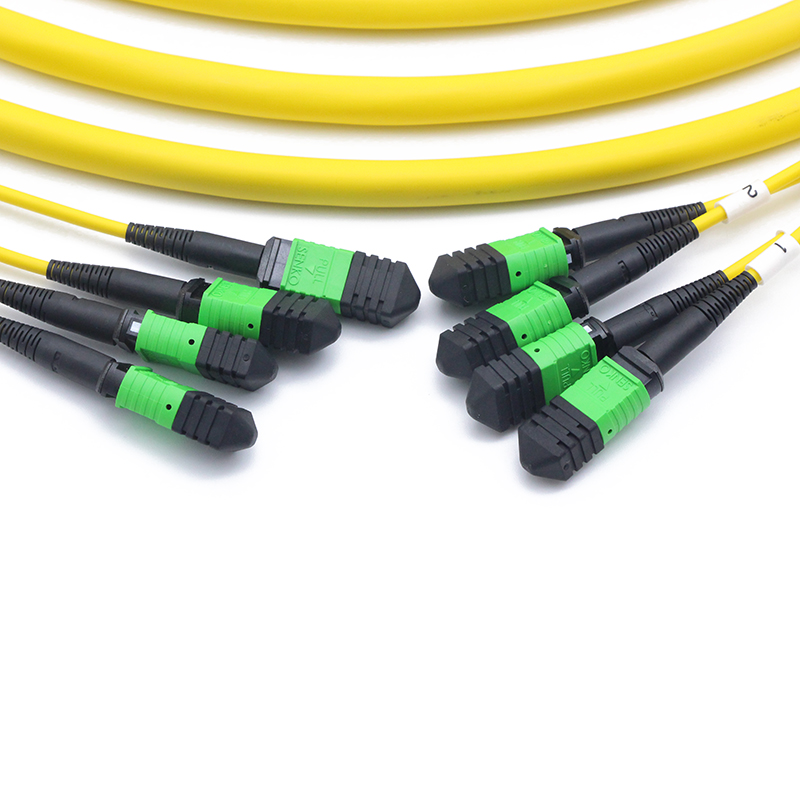

48F Singlemode MPO Trunk Cable

24F-144F MPO Trunk Cable is terminated with MPO connector on both ends. MPO Trunk cable/Patch cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.

48 Cores Singlemode MPO Trunk Cable Specifications:

Spec items.	Single mode (APC 8-degree polished)	Multimode (PC Flat polish)
Insertion loss (MPO) (IEC 61300-3-34)	Standard loss：≤0.75dB(max), ≤0.50dB(Typical) Super Low loss：≤0.35dB(max), ≤0.20dB(Typical)	Standard loss：≤0.6dB(max), ≤0.50(Typical) Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical)
Return loss(MPO)	≥60dB（8degree polishing）	≥25dB
Durability	<0.3dBtypical change, 200 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

Products Materials-Connector

All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo.

Connector

Reference

Housing Details

MPO Singlemode

IEC 61754-7

SM APC: Green connectors+black boot (Standard Loss MPO)

SM APC: Yellow connectors+black boot (Super low loss MPO)

MPO Multimode

IEC 61754-7

OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)

OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)

IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant

Structured cabling per TIA-568-C

10G Fiber Channel Compliant

40G and 100G IEEE 802.3

Connector	Fiber Channel

MPO Connectors	12 or 24 Fibers
Note: Female connector need to connect with male connector type.

Products Materials-Cable

The cable for 24F-144F is a kind of 2.0mm/3.0mm multi-tubes Micro-fiber cable. Each Tube’s hold 12F. See Below.

24-144F MPO-MPO Trunk cable 4

Fiber number	Flat 24	36 & 48	72F	96F	144F
Subunit diameter (mm)	2.9±0.1	2.9±0.1	2.9±0.1	2.9±0.1	2.9±0.1
Cable diameter(mm)	(4.2±0.3)x(7.6±0.4)	9.0±0.3	11.2±0.3	13.5±0.3	17.5±0.3
Cable weight(kg/km)	(LSZH 52)/ (PVC 44)	(LSZH 93) /(PVC 86)	(LSZH106)/ (PVC 96)	(LSZH146)/ (PVC 135)	(LSZH260)/ (PVC 224)
Max.loading(IEC794-1) Installation/Operation	200/80	1000N/300N
Temperature rating Op- eration&Storage	-20°C ~70°C

MPO End-Face 3D Interference

Item (IEC-61300-3-30)			Minimum	Maximum
Radius of curvature (mm)	ROC-X(ABS)		2000	\
	ROC-Y(ABS)		50mm	\
Angle	Angle-X		-0.2°	-0.2°
	Angle-Y	APC	7.85°	8.15°
		PC	-0.2°	-0.2°
Fiber height (nm)			1000nm	3500nm
Max.DH.All Fiber:			-300nm	300nm
DH.Adj:			-300nm	300nm
DH.Ave Fiber:			-300nm	300nm
Core Dip:	SM		N/A	N/A
	MM		-200nm	300nm

Three Connection Methods Help Keep the Right MTP/MPO Polarity

Because 24F-144F MPO trunk cable’s unit connector is 12F MPO， So it have same polarity as single 12F MPO trunk cable.

24-144F MPO-MPO Trunk cable 5

48 Cores Singlemode MPO Trunk Cable Features:

Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability

48F Singlemode MPO Trunk Cable Application:

All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density
cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
