Fiber Optic Adapter FC Female to LC Female Hybrid Simplex SC Footprint Adapters

Product Name : FC Female to LC Female Hybrid Simplex Adapter - SC Footprint Type

Insertion Loss : ≤0.5dB(max),0.3dB(mean)

Return Loss : SM APC≤60dB,UPC≤50dB; MM PC≤35dB

Durability (500 Mating) : 0.1dB Max.

Withdrawal force(g/f) : 200~600

Storage Temp : -40～+85℃

Inquiry Now Download

Description

FC Female to LC Female Hybrid Simplex Fiber Optic Adapter - SC Footprint Type

Female to Female Hybrid Fiber Optic Adapter are developed to couple and mate two different (hybrid) connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.

This FC(Female) to LC(Female) SC footprint type fiber optic hybrid adapter, Converting FC connector to LC Connector.Variable FC interface conversion LC interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.

Material:

Parts name	Material	Color
Housing body	Zinc alloy	-
Sleeve	High precision Ceramic sleeve	White
Dust Cover	ABS/Rubber	White/red/green/black

FC to LC Female Hybrid SX Fiber Optic Adapter - SC Footprint Specification:

Test item	(SM-9/125) UPC	(SM-9/125) APC	MM PC
Insertion Loss	≤0.5dB（max）0.3dB(mean)
Return Loss	≥50 dB	≥60 dB	≥35 dB
Durability (500 Mating)	0.1dB Max.
Withdrawal force(g/f)	200~600
Storage Temp	-40～+85

Products details:

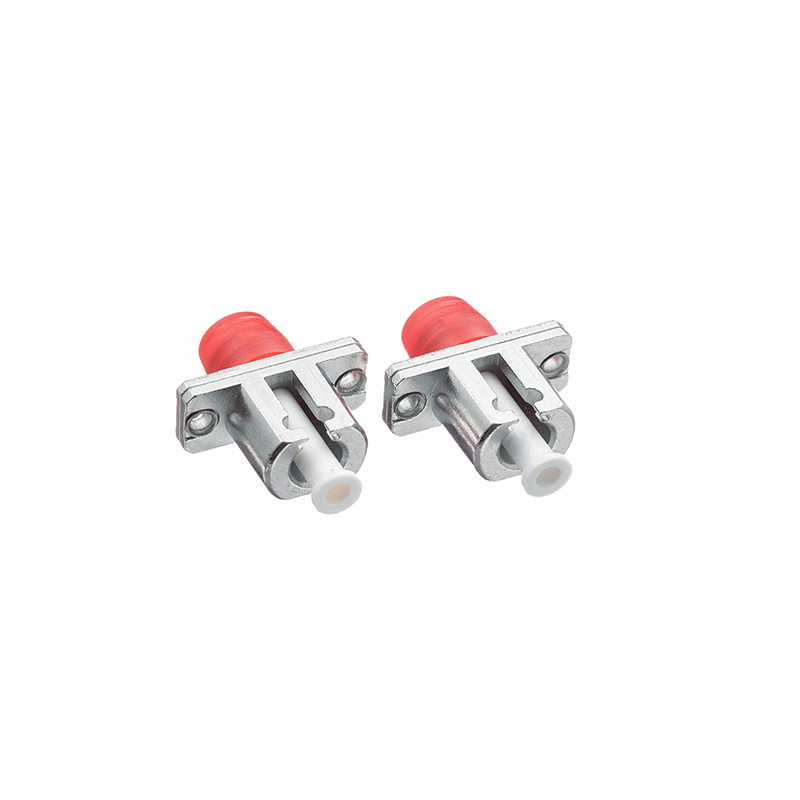

FC-LC Hybrid Simplex Fiber Optic Adapter - SC Footprint

FC to LC Simplex Hybrid Adapter - SC Footprint Detail

Features:

Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy

Applications:

Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
