Fiber Adapter LC Female to SC Female Hybrid SX Metal SC Footprint 1 Adapters

Product Name : LC Female to SC Female Hybrid Simplex Metal Adapter - SC Footprint Type 1

Insertion Loss : ≤0.2dB

Return Loss : SM APC≤60dB,UPC≤50dB; MM PC≤35dB

Durability (500 Mating) : 0.1dB Max.

Withdrawal force(g/f) : 200~600

Storage Temp : -40~+85℃

LC Female to SC Female Hybrid Simplex Metal Fiber Adapter - SC Footprint Type 1



Female to Female Hybrid Fiber Adapter are developed to couple and mate two different (hybrid) connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.


This LC(Female) to SC(Female) SC footprint type fiber optic hybrid adapter, Converting LC connector to SC Connector.Variable LC interface conversion SC interface. Provided a simple and reliable solution for connecting two different
optic fiber transmission joints.



Material:



Parts name

Material

Color

Housing body

Zinc alloy/PC/PEI

Metal/Blue/Green/Beige

Sleeve

High precision Ceramic sleeve

White

Dust Cover

ABS/Rubber

White/red/green/black



LC-SC Female Hybrid SX Fiber Adapter - SC Footprint 1 Specification:



Test item

(SM-9/125) UPC

(SM-9/125) APC

MM PC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.2dB

Return Loss

≥50 dB

≥60 dB

≥35 dB

Durability (500 Mating)

0.1dB Max.

Withdrawal force(g/f)

200~600

Storage Temp

-40~+85



Products details:

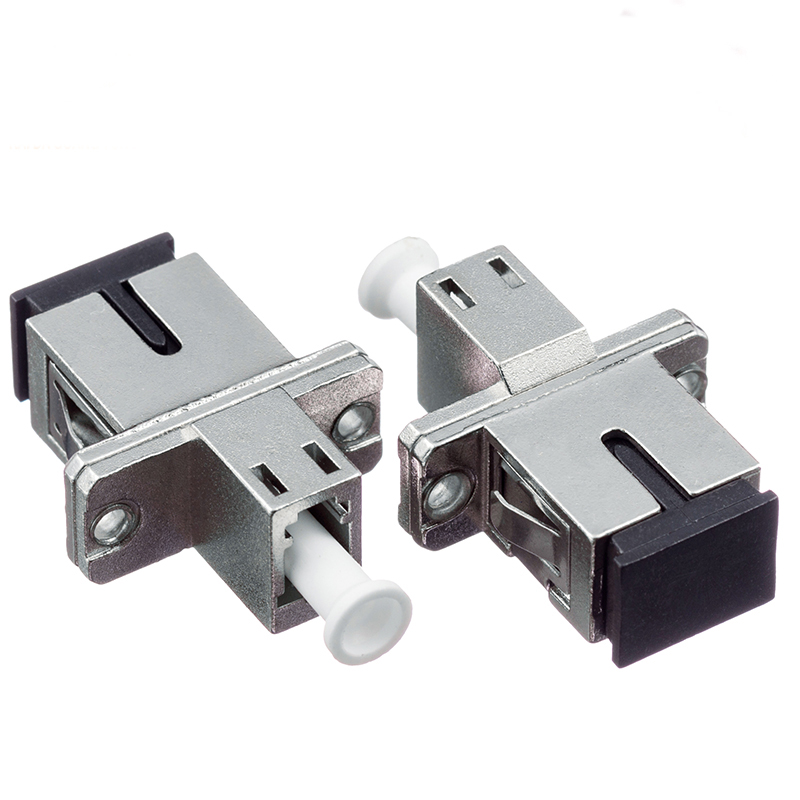

LC-SC Hybrid SX Metal Fiber Adapter - SC Footprint Type 1

LC to SC Hybrid SX Metal Adapter - SC Footprint Type 1



Features:


Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy


Applications:


Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
