Fiber Optic Adapter ST Female to LC Male Conversion Duplex Adapters

Product Name : ST Female to LC Male Duplex Conversion Fiber Optic Adapter

Insertion Loss : ≤0.3dB

Return Loss : SM APC≤60dB,UPC≤50dB; MM PC≤35dB

Durability (500 Mating) : 0.2dB Max.

Storage Temp : -40～+85℃

Inquiry Now Download

Description

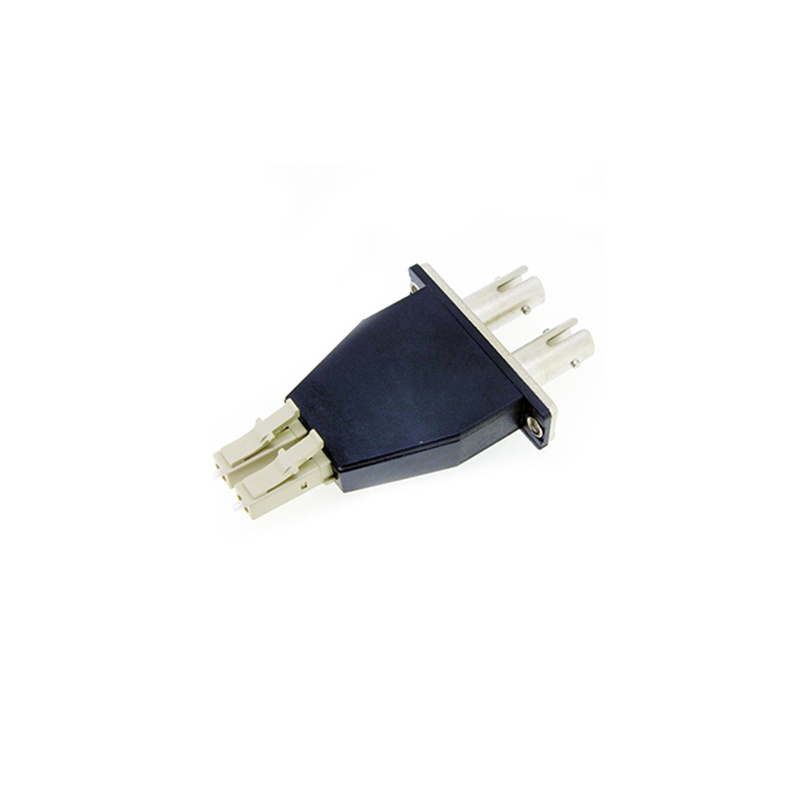

ST Female to LC Male Duplex Fiber Optic Adapter

ST Female to LC male conversion fiber optic adapter adopt embedded optical fiber connector and optical fiber ferrule matching Sleeve joint technology. The products can hybrid a type of fiber optic connectors (male) into another type of optical fiber connector (male). It keeps the advantages of small size, light signal stable, easy to use characteristics, widely used in optical fiber equipment instrument testing and rescue project construction field.

This ST(Female) to LC(Male) fiber optic conversion adapter, Converting ST connector to LC Connector. Variable ST interface conversion LC interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.

ST Female to LC Male DX Fiber Optic Adapter Specification:

Test item	(SM-9/125) UPC	(SM-9/125) APC	MM-50/125 PC	MM-62.5/125 PC
Insertion Loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Return Loss	≥50 dB	≥60 dB	≥35 dB	≥35 dB
Durability (500 Mating)	0.2dB Max.
Operation Temp	-40～+85
Storage Temp	-40～+85
Remark: ST Female to LC Male Hybrid Adapter are ultra-reliable components featuring low insertion loss and back reflection loss. You can select single mode 9/125um or multimode 62.5/125um or multimode 50/125um.
