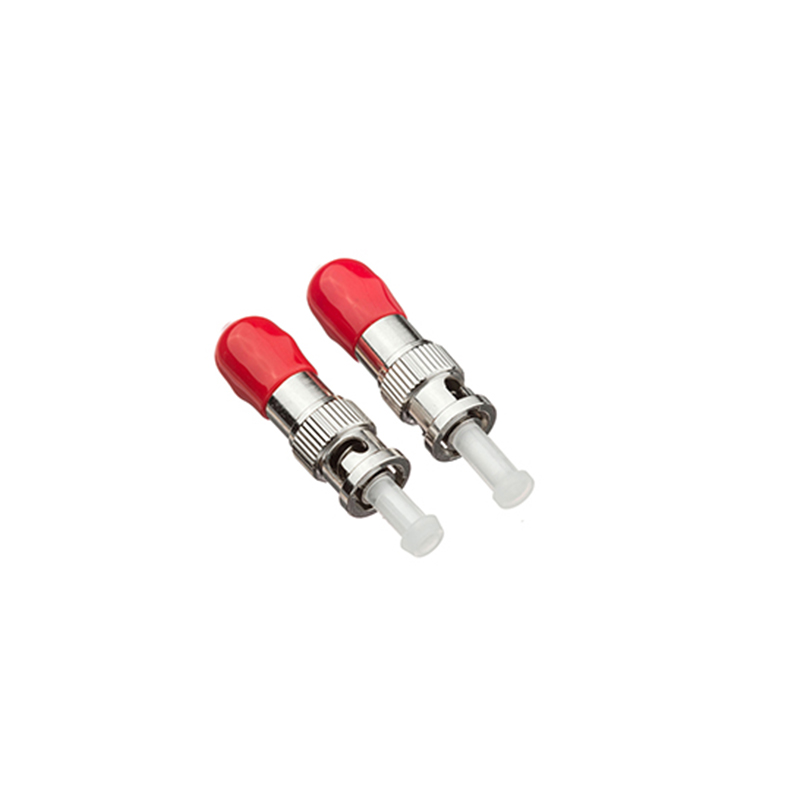

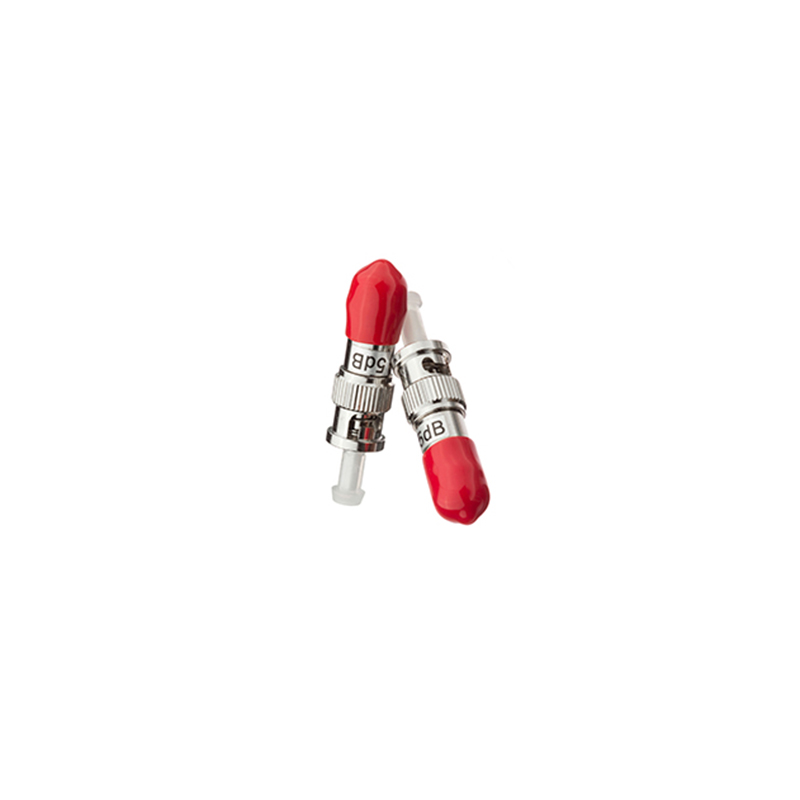

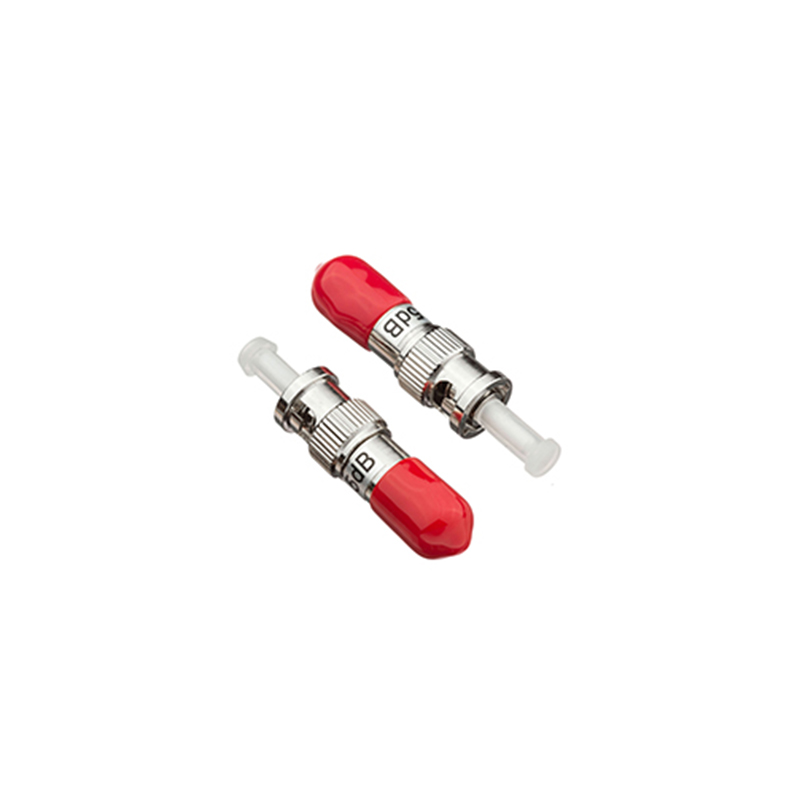

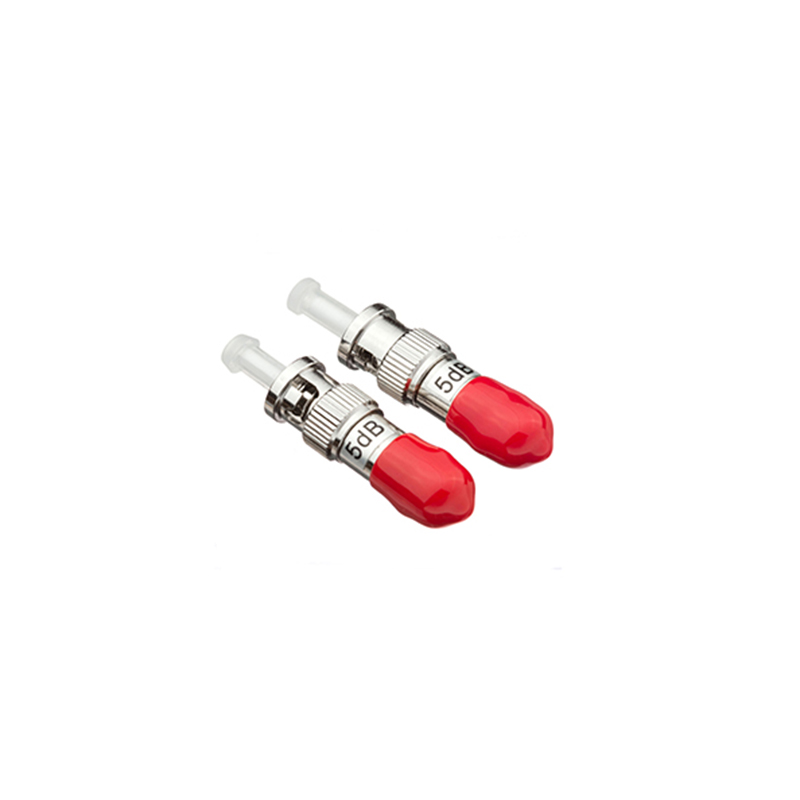

ST Female to ST Male Plug in Fixed Fiber Attenuator

Product Name : ST Female to ST Male Plug-in Fixed Fiber Attenuator

Operating Bandwidth : SM 1310/1550nm; MM 850nm

Return Loss : SM UPC≥50dB,APC≥60dB; MM PC≥35dB

Attenuation Tolerance : 1~5db±0.5db &6~25db±10%

Max Optical Input Power : 200mw

Operating Temp : -40°C to +85°C

ST Female to ST Male Plug-in Fixed Fiber Attenuator


Fiber Attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in singlemode long-haul applications to prevent optical overload at the receiver. fiber attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications. Though its applications range widely, fixed attenuators are most commonly used for test and measurement, optical sensors, and telecommunications applications.


Female to male Fixed fiber attenuators from OMC offer defined control of optical signals in both integrated and add-on products. Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels your project or application requirement. These precise attenuation levels provide for highly accurate performance.


OMC’s SC/LC/FC/ST/E2000/MU/MPO Female to male Fixed fiber attenuator are available for SM UPC (1-25dB) and SM APC (1-25dB).



ST(F) to ST(M) Fixed Fiber Attenuator Specifications:



Items

Parameters



Operating Bandwidth:

SM

MM

1310/1550nm

(1200nm-1600nm)

850nm

Return Loss

UPC≥50db,

APC≥60db

PC≥35db

Attenuation Tolerance

1~5db±0.5db &6~25db±10%

Vibration

10~55hz(2hr)

Max Optical Input Power

200mw

Operating temp

- 40°C to +85°C

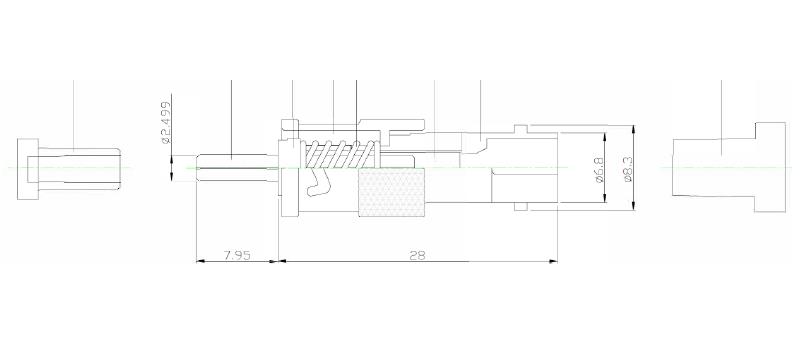

ST Female to Male Fixed Fiber Attenuator Drawing:



ST Female to male Fixed attenuator



Products Materials:



Parts name

Material

Housing body

Zine-Ally

Sleeve

High precision Ceramic sleeve

Sleeve Subassembly

Ceramic&SUS304

Inside hook

PBT

Spring

SUS304

Dust Cover

PE



Features:



  •  Precise Attenuation Values
  •  Low PDL&Insertion Loss
  •  Precise Reflection Polishing
  •  Fast Connection
  •  Stable attenuation, highly Reliable
  •  Complies with industry green initiative such as ROHS
  •  GR910 Compliant

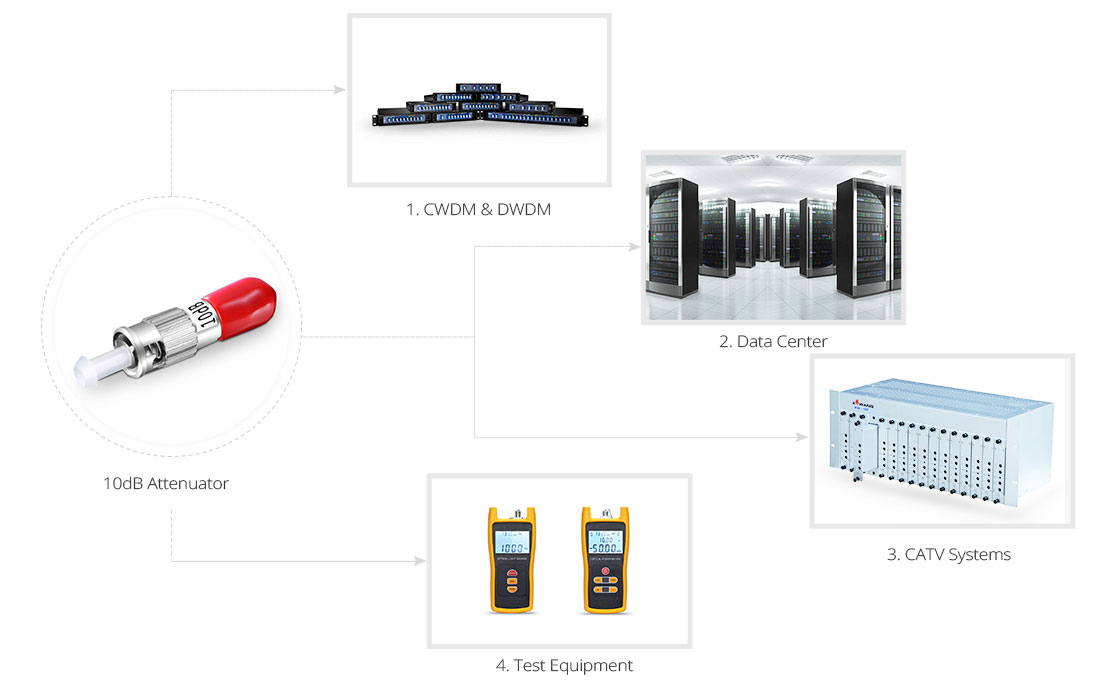

Fiber Attenuator Application:


Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single- mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications



fiber optic attenuator application



Packaging:


This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as de- fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.



fiber optic attenuator packaging
