Fiber Optic Fusion Splicer Equpment FTTH Splicing Tools OMCFS - X600

Product Name : Fiber Fusion Splicer

Operate mode : Manual, Automatic

Splicing Time : 7s

Heat Time : 26 seconds for 60mm and 40mm shrinkable sleeves

Splicing Loss : SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB

Dimension : 200mm(L)x123mm(W)x95mm(H)

Interface : GUI menu interface, easier operation

Available language : English, Russian,Spanish,Portuguese,Italian,French,German

Inquiry Now Download

Description

Handhold Small Fusion Splicer-OMCFS-X600

OMCFS-X600 Handhold Small Fiber Fusion Splicer, with high performance price ratio, is the main product of OMC Company. With SAMLL& smart appearance, reliable quality, OMCFS-600 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument.Widely used in the construction, inspection, maintenance of FTTX project.

Feature:

1. Small, light, long battery life
2. 4 motors accurate cladding alignment
3. 250 times magnification of fiber cores
4. 7s fast splicing, 26s intelligent heating
5. More than 4000 times electrodes discharging
6. 4400mAh Li-batery, 220 cycels splicing and heating
7. Inductive automatic heater, not heating without fibers
8. 3 in 1 multi-function clamps, new waterproof structure

Specifications

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Diameter of cladding	80 -150μm
Diameter of coating	160 – 900μm
Typical splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Available language	English, Russian,Spanish,Portuguese,Italian,French,German
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	7seconds
Tube heating time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	4400mAh Li-battery, typical 220 cycles(splice and tube heat)
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s
Dimension	200mm(L)x123mm(W)x95mm(H)
Weight	1.6kg including battery
Package	Packed in carton with protection foam, Size 43cm37cm27cm, G.W.6.3kg

Product Details

Fiber Fusion Splicer Product Details

Standard Accessories

Fiber Fusion Splicer Standard Accessories

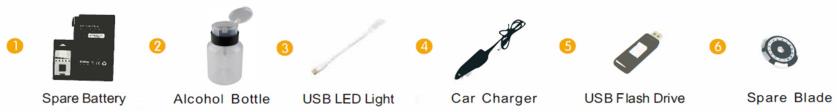

Optional Accessories

Fiber Fusion Splicer Optional Accessories

Guarantee

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.
2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.
3) 24 months warranty period. Within warranty period, all repair and replacement of Non-human damage are for free.
4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.
