Handheld Optical Multi Meter BOU350 Fiber Tools

Product Name : Optical Multi Meter

Part No. : BOU350

Size(H*W*D) : 160mm*75mm*32mm

Weight : About 190g

Storage Temperature : -20 -- +60 , < 90%RH

Operating Temperature : -10 -- +50 , < 90%RH

Inquiry Now Download

Description

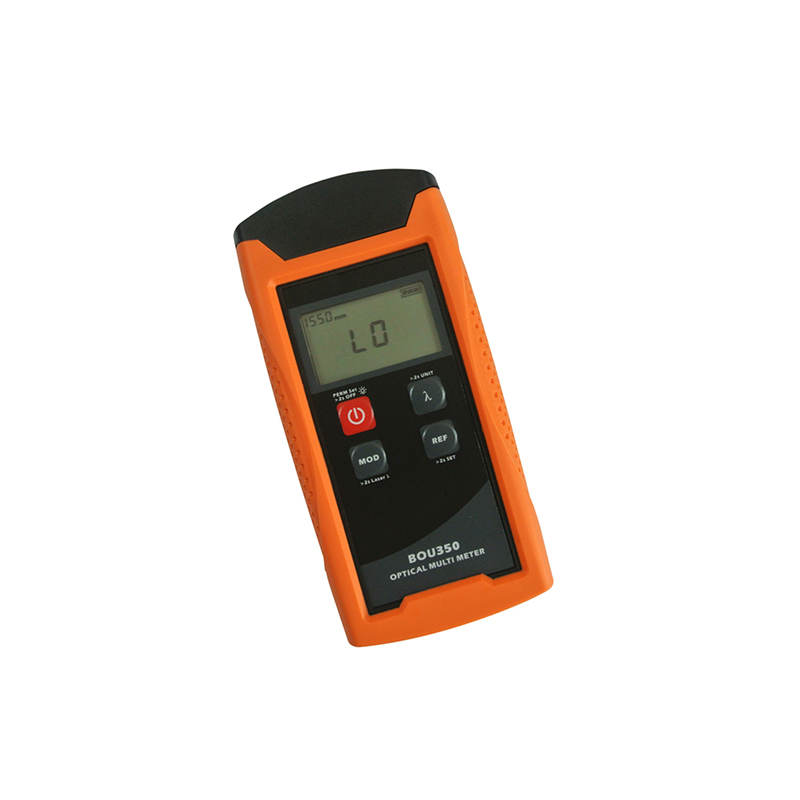

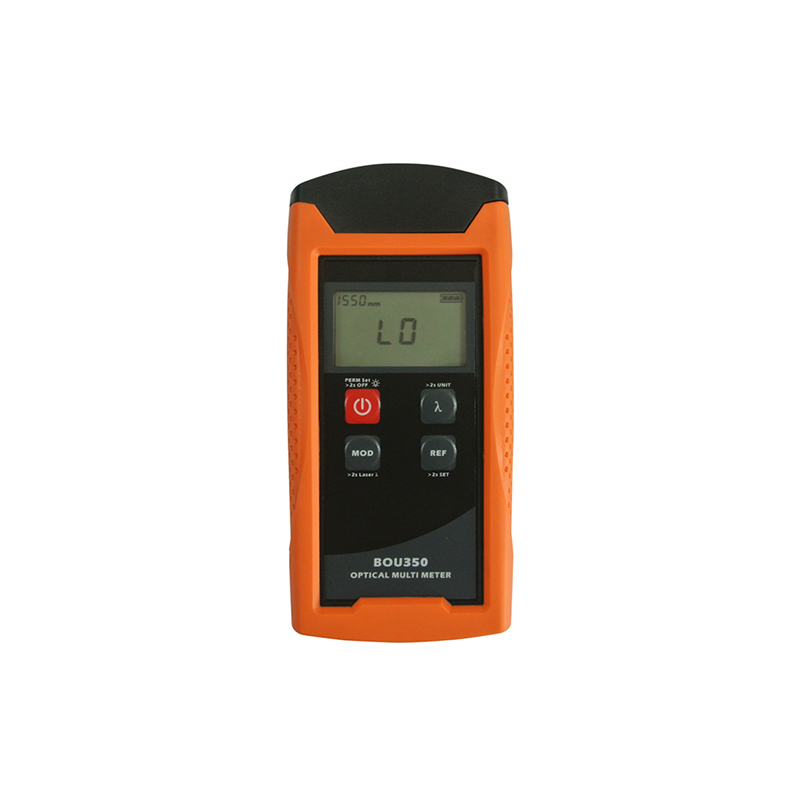

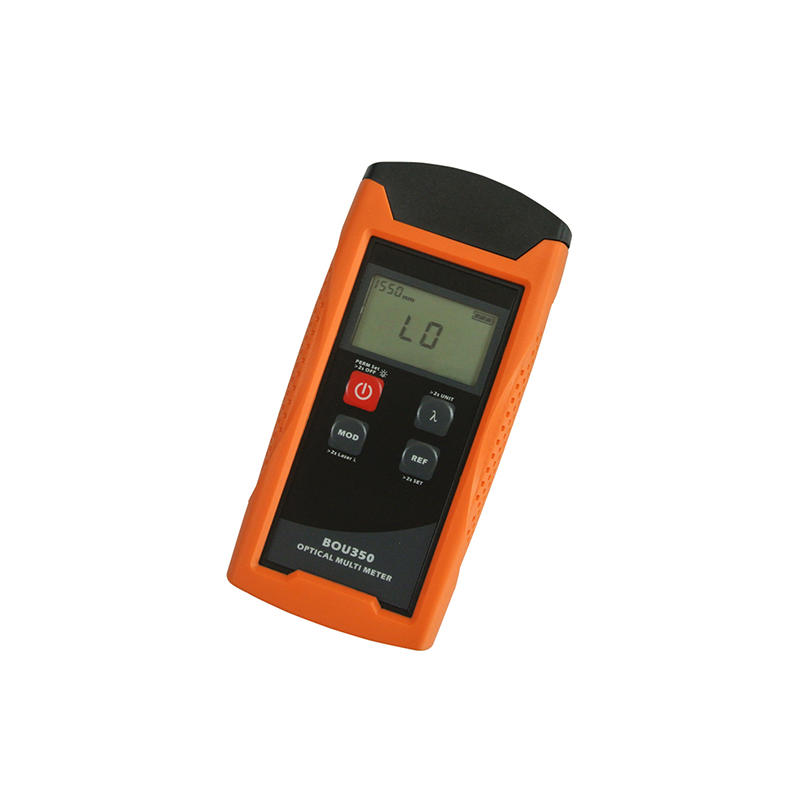

Optical Multi Meter BOU350

Features:

OPM,OLS in one device
Measure optical attenuation
Energy save mode
OPM with 850/1300/1310/1490/1550/1625nm
Reference value setting for every single wavelength Power autonomy of 100 hours
One-year warranty and Three-year recommended calibration interval

Optical Multi Meter BOU350 Specifications:

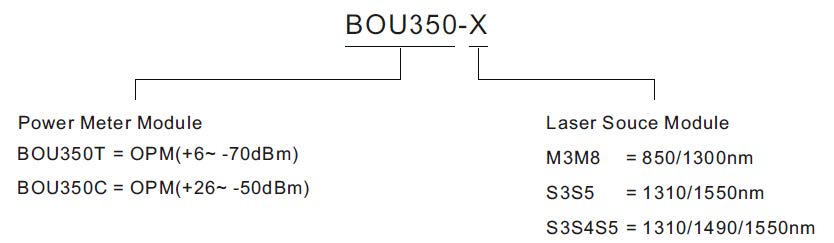

Light Source	M3M8	S3S5	S3S4S5
Wavelength (nm)	850/1300	1310/1550	1310/1490/1550
Output Power	> - 6dBm @ 1310nm/1490nm/1550nm/1625nm > -10 dBm @ 850nm/1300nm
Modulation	270Hz, 1KHz, 2KHz
Connector	FC/PC
Power Meter
Accuracy *	+/-0.2dB
Calibrated Wavelengths	850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Tone Detector	YES
Reference Value Set	YES

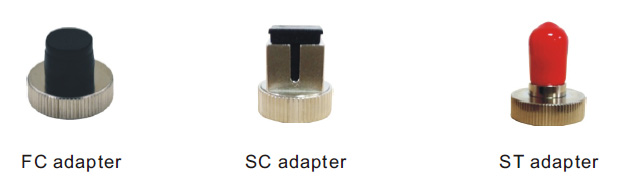

Connector	FC & 2.5mm UPP (SC, ST optional)
Auto Power Off	No operation in 10 minutes (can be canceled), Low battery energy
Battery Charge	Yes
Power Supply	2 * AA batteries or AC/DC adapter
