Handheld Optical Power Meter OPM-01 Fiber Testing Tools

Product Name : Optical Power Meter

Model : OPM-01

Fiber Connector : 2.5mm+FC, SC (1.25mm adapter for LC sold separately)

Wavelength : 800~1700nm

Measurement Range : -70~+10dBm

Working Temperature : -4 Fahrenheit (-20 Celsius) to 140 Fahrenheit (60 Celsius)

Weight : 0.635 lbs

Inquiry Now Download

Description

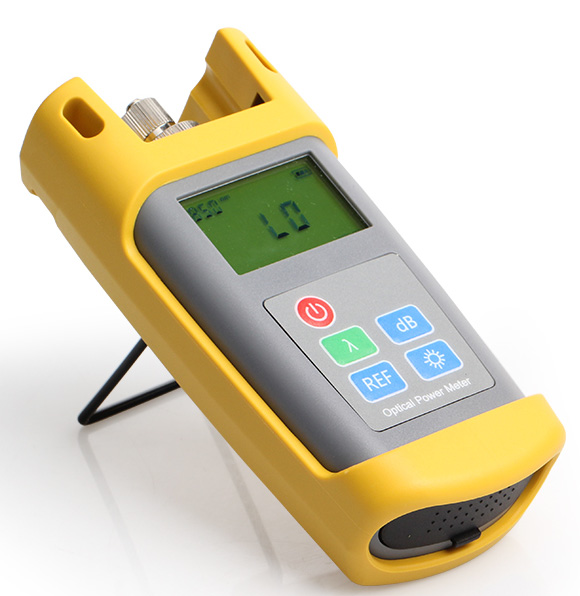

Optical Power Meter OPM-01

Handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.

Handheld Optical Power Meter OPM-01 Fiber Testing Tools

Feature:

Pocket size, large easy to read LCD display, easy to use
Wavelength: 800 ~1700 nm.
2.5 mm FC,SC,ST connector input (1.25 mm adapter for LC sold Separately）
Power measurements in dBm or mW.
PC software available for testing data collection and report generation
Power: 2 AA Batteries.

OPM-01 Optical Power Meter Specifications:

Model	OPM-01
Fiber Connector	2.5mm+FC, SC (1.25mm adapter for LC sold separately)
Measurement Range	-70~+10dBm
Wavelength	800~1700nm
USB Data Function	PC software available Data Function for testing data collection and report
Working Temperature	-4 Fahrenheit (-20 Celsius) to 140 Fahrenheit (60 Celsius)
Power	2 AAA Batteries
Battery Life	60 hours
Weight	0.635 lbs
Standard Package	Optical Power Meter, carry bag,user manual,FC,SC connector
