Indoor Armored FO Cable Unitube Duplex Cable

Product Name : Indoor Armored FO Fiber Cable-Unitube Duplex

Fiber Type : G652D,G655,G657,OM1,OM2,OM3,OM4

Min Bending Radius(mm) : Dynamic 20D/Static 10D (except G657)

Coat Material : PVC, OFNR,OFNP,LSZH,LSOH

OD(um) : 3.3

Temperature Range : PVC: -20°C ~+90°C ；LSZH：-20°C ~+70°C

Inquiry Now Download

Description

Indoor Armored FO Cable - Unitube Duplex

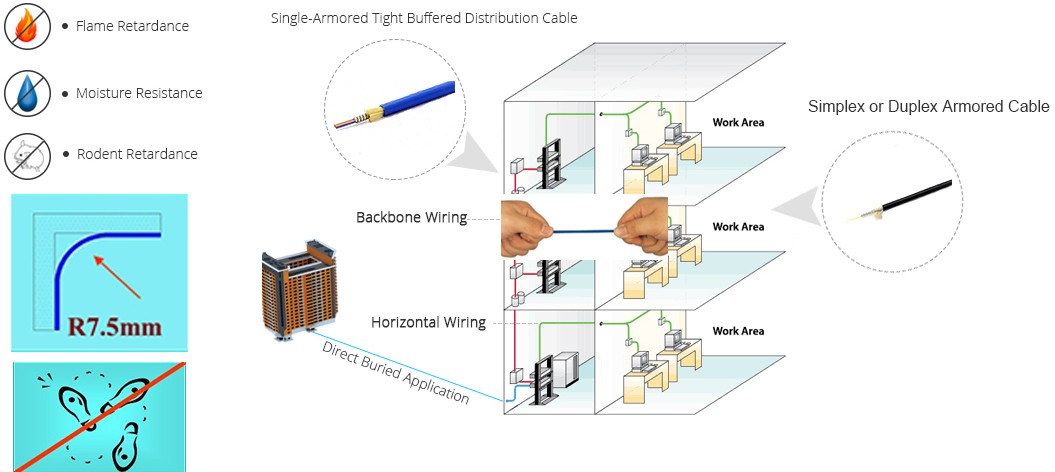

The Unitube Duplex Armored cable consists of a 0.6mm or 0.9mm tight buffer fibers, An armored flexible metal tube, a layer of Kevlar yarn, and an outer jacket. It is an ideal choice for direct connection. It's the easiest fiber cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired.

The armored cable is a special cable with a stainless-steel Spiral Pipe inside the cable which could protect the fiber bite by ant, mouse related rodent animals.

This cable could be used as normal electric wire.

Indoor Armored FO Cable Structure:

unitube duplex armored cable 1 unitube duplex armored cable 2

Fiber Type	G652D,G655,G657,OM1,OM2,OM3,OM4
Coating Material	PVC, OFNR,OFNP,LSZH,LSOH
OD Optional(mm)	3.3	3.3
Armored unit	Stainless-steel Spiral Pipe	Stainless-steel Spiral Pipe +stainless steel braiding
Max Tension (Long term/ Short term N)	200/400	300/500
Max Crushing Resistance(N/100) (Long term/ Short term N)	1000/3000	2000/3000
Min Bending Radius(mm)	Dynamic 20D/Static 10D (except G657)
Temperature range	PVC: -20°C ~+90°C ；LSZH：-20°C ~+70°C
