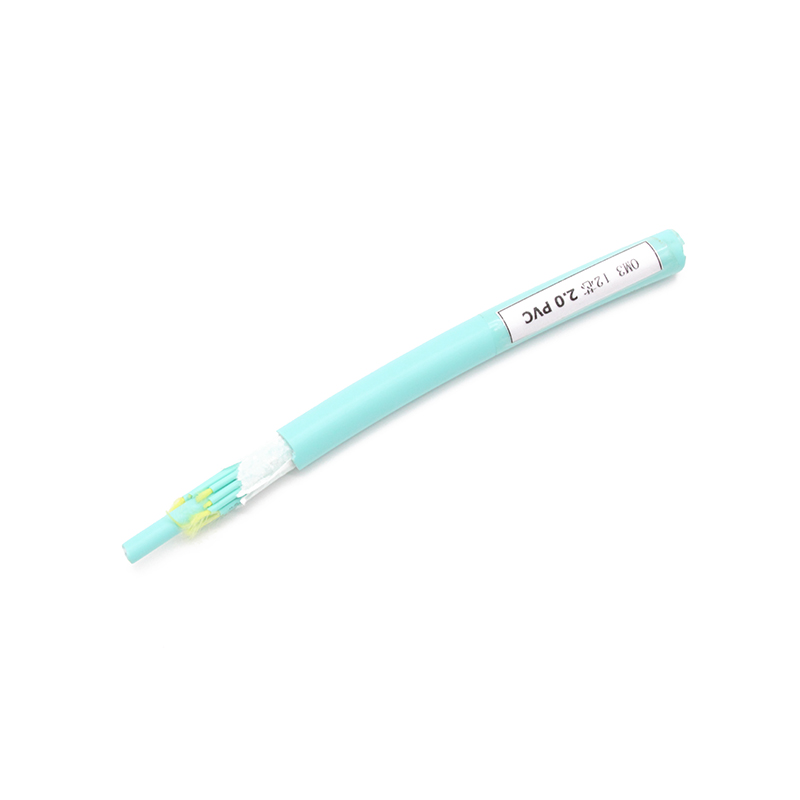

Indoor Soft FO Cable 2.0mm Breakout Unitube Design

Product Name : Indoor Soft FO Cable - 2.0mm Breakout Unitube Design (4-48 Fibers)

Fiber Type : G652D,G655,G657,OM1,OM2,OM3,OM4

Coating Material : PVC, OFNR,OFNP,LSZH,LSOH

Max crush resistance (N/100mm) : Short term :1000/ Long term:300

Temperature Range : PVC -20°C ~+90°C; LSZH -20°C ~+70°C

Inquiry Now Download

Description

Indoor Soft FO Cable - 2.0mm Break-out Uni-tube Design (4-48 fibers)

Break-out cable use Simplex cable (2.0mm flame-retardant tight buffer fiber, Aramid yarn as strength member) as subunit.A fiber reinforced plastic (FRP) locates in the center of core as a no-metallic as strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH or OFNR or OFNP jacket.

Standards:

Comply with standard GR-409, IEC 60794-2-10/11, meet the requirements of UL approval for OFNR and OFNP.

Cable structure:

Indoor Soft FO cable 2.0mm Breakout Unitube Design 1

Fiber Type		G652D,G655,G657,OM1,OM2,OM3,OM4
Coating Material		PVC, OFNR,OFNP,LSZH,LSOH
Fiber cores No.		2/4	6	8	12	24	48
OD (mm)		7.5±0.5	9.0±0.5	10.5±0.5	12.5±0.5	15.5±0.5	20.5±0.5
Max Tensile Strength (N)	Short term	660	700	800	1200	1400	1800
	Long term	200	200	250	400	500	600
Min Bending Radius(mm)		Dynamic :20D/ Static: 10D
Max crush resistance (N/100mm)		Short term :1000/ Long term:300
Temperature range		PVC: -20°C ~+90°C ；LSZH：-20°C ~+70°C

Features:

Tight buffer and Loose buffer fiber easy for stripping
Excellent flame-retardant performance
Aramid yarn as strength member make cable have excellent
tensile strength
Adopt strict process and raw materials control to guarantee
the lifespan of 15 years
The jacket anti-corrosion, anti-water ,anti-ultraviolet radiation,
flame-retardant and harmless to environment

Application:

Used in pigtails and patch cords
Used as interconnect lines of equipment and used in optical connections in optical communication rooms and optical distribution frames

Package:

Indoor Soft FO cable 2
