Stranded Loose Tube No Metallic Strength Member No Armored Ourdoor Cable GYFTY

Product Name : Stranded Loose Tube No-metallic Strength Member No-armored Ourdoor Cable - GYFTY

Fibers : 2-120 Cores

Cable OD : 10.6-15.3 mm

Weight : 88-185 kg

Operating Temperature : -40℃～+70℃

Inquiry Now Download

Description

Stranded Loose Tube No-metallic Strength Member No-armored Ourdoor Cable - GYFTY

Outdoor Optical fiber cable positioned between CO and first DP in FTTX network. Used as mainline cable which environment is in Buried ,Aerial, under earth Pipes, Poles etc.

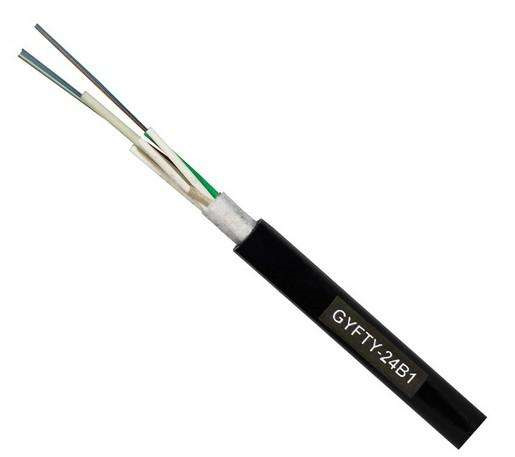

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Product Detail:

No-Armored Outdoor Fiber Optic cable GYFTY 1

Part No.	Fibers	Tubes	Cable OD (mm)	Weight Kg/km	Tensile strength Long term/short term(N/1m)	Crush resistance Long term/short term(N/1m)	Bending Radius Static/Dynamic (mm)
GYFTY-2~6X	2~6	1	10.6	88	400/1000	300/1000	10D/20D
GYFTY-8~12X	8~12	2	10.6	88	400/1000	300/1000	10D/20D
GYFTY-14~18X	14~18	3	10.6	88	400/1000	300/1000	10D/20D
GYFTY-20~24X	20~24	4	10.6	88	400/1000	300/1000	10D/20D
GYFTY-26~30X	26~30	5	10.6	88	400/1000	300/1000	10D/20D
GYFTY-32~36X	32~36	6	10.6	88	400/1000	300/1000	10D/20D
GYFTY-2~6X	2~6	1	11	97	600/1500	300/1000	10D/20D
GYFTY-8~12X	8~12	2	11	97	600/1500	300/1000	10D/20D
GYFTY-14~18X	14~18	3	11	97	600/1500	300/1000	10D/20D
GYFTY-20~24X	20~24	4	11	97	600/1500	300/1000	10D/20D
GYFTY-26~30X	26~30	5	11	97	600/1500	300/1000	10D/20D
GYFTY-32~36X	32~36	6	11	97	600/1500	300/1000	10D/20D
GYFTY-38~42X	38~42	7	11	97	600/1500	300/1000	10D/20D
GYFTY-44~48X	44~48	8	12	113	600/1500	300/1000	10D/20D
GYFTY-50~60X	50~60	5	12	113	600/1500	300/1000	10D/20D
GYFTY-62~72X	62~72	6	12	113	600/1500	300/1000	10D/20D
GYFTY-2~6X	2~6	1	12	120	1000/3000	300/1000	10D/20D
GYFTY-8~12X	8~12	2	12	120	1000/3000	300/1000	10D/20D
GYFTY-14~18X	14~18	3	12	120	1000/3000	300/1000	10D/20D
GYFTY-20~24X	20~24	4	12	120	1000/3000	300/1000	10D/20D
GYFTY-26~30X	26~30	5	12	120	1000/3000	300/1000	10D/20D
GYFTY-32~36X	32~36	6	12	120	1000/3000	300/1000	10D/20D
GYFTY-38~42X	38~42	7	12	120	1000/3000	300/1000	10D/20D
GYFTY-44~48X	44~48	8	12	120	1000/3000	300/1000	10D/20D
GYFTY-50~60X	50~60	5	13	137	1000/3000	300/1000	10D/20D
GYFTY-62~72X	62~72	6	13	137	1000/3000	300/1000	10D/20D
GYFTY-74~84X	74~84	7	13	137	1000/3000	300/1000	10D/20D
GYFTY-86~96X	86~96	8	13.9	154	1000/3000	300/1000	10D/20D
GYFTY-98~108X	98~108	9	15.3	185	1000/3000	300/1000	10D/20D
GYFTY-110~120X	110~120	10	15.3	185	1000/3000	300/1000	10D/20D
