Optical Time Domain Reflectometer OTDR QX50 - MS Series Fiber Tool

Product Name : OTDR QX50-MS

Loss Threshold : 0.05dB

Sampling Point : 32K

Loss Resolution ratio: 0.001dB

Distance Scope : 0.3 to 180 km

Memory Capacity Of Trace : SD Card (2G), > 10000 pieces

Inquiry Now Download

Description

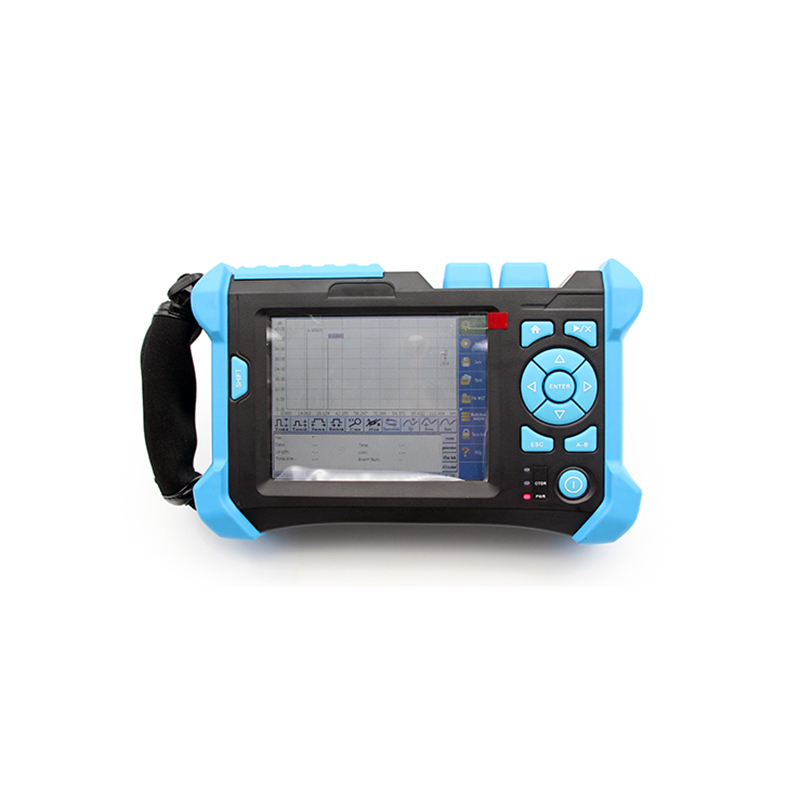

OTDR QX50-MS Fiber Tool

An Optical Time Domain Reflectometer (OTDR) is used in fiber optics to measure the time and intensity of the light reflected on an optical fiber. More to the point, it is used as a troubleshooting device to find faults, splices, and bends in fiber optic cables, with an eye toward identifying light loss. Light loss is especially important in fiber optic cables because it can interfere with the transmission of data. An OTDR can detect such light loss and pinpoint trouble areas, making repairs easy. The more quickly trouble areas are identified and addressed, the less your fiber optic network will suffer from data transfer problems.

OTDR QX50-MS

Features:

Integrated design, smart and rugged
IP65 protection level, outdoor enhanced
7-inch anti-reflection LCD screen
PON online test module (1625nm) is optional
MMF test module (850/1300nm) is optional
Support multi-language display and input

Application:

FTTX test with PON networks
CATV network testing
Access network testing
LAN network testing
Metro network testing
Lab and Factory testing
Live fiber troubleshooting

OTDR QX50-MS Specification:

Model	QX50-MS	QX50-MS2
Wavelength (nm)	850/1310/1550	850/13001310/1550
Dynamic range (dB)2	21/19/28	21/19/30/28
Pulse width (ns)	5、20、40、80、160、320、640、1280
Event blind zone (m)3	1.8m
Attenuation blind zone (m)3	10m
Linearity (dB/dB)	±0.05 dB/ dB
Loss threshold (dB)	0.05
Loss resolution ratio (dB)	0.001
Sampling resolution ratio (m)	0.125 to 8
Sampling point	32K
Distance uncertainty (m)	±(1 m + 5x10-5x distance + sampling interval)
Distance scope (km)	0.3 to 180
Typical real-time refreshing duration (S)	0.2
Memory capacity of trace	SD Card (2G), > 10000 pieces
Duration of measurement	Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, 3min are selectable
