Din Fiber Optic Adapter SC Footprint Simplex Adapters

Product Name : Din Simplex Fiber Optic Adapter - SC Footprint

Return Loss : SM APC≥60 dB,UPC≥50 dB;MM PC≥35 dB

Insertion Loss : ≤0.2dB

Durability(500 Mating) : 0.1dB Max.

Withdrawal Force(g/f) : 2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp(℃) : -40～+85

Inquiry Now Download

Din Simplex Fiber Optic Adapter - SC Footprint



DIN Simplex Fiber optic adapter-SC Footprint are developed to couple and mate two Din connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.


OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Products Materials:



Parts name

Material

Color

Housing body

Nickel plated brass/Zinc alloy

-

Sleeve

High precision Ceramic sleeve

White

Dust Cover

Rubber

Red/Black



Din SX SC Footprint Fiber Optic Adapter Specifications:



Test item

(SM-9/125) UPC

(SM-9/125) APC

MM PC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.2dB

Return Loss

≥50 dB

≥60 dB

≥35 dB

Durability (500 Mating)

0.1dB Max.

Withdrawal force (g/f)

2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp（℃）

-40～+85



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125



Product Details:

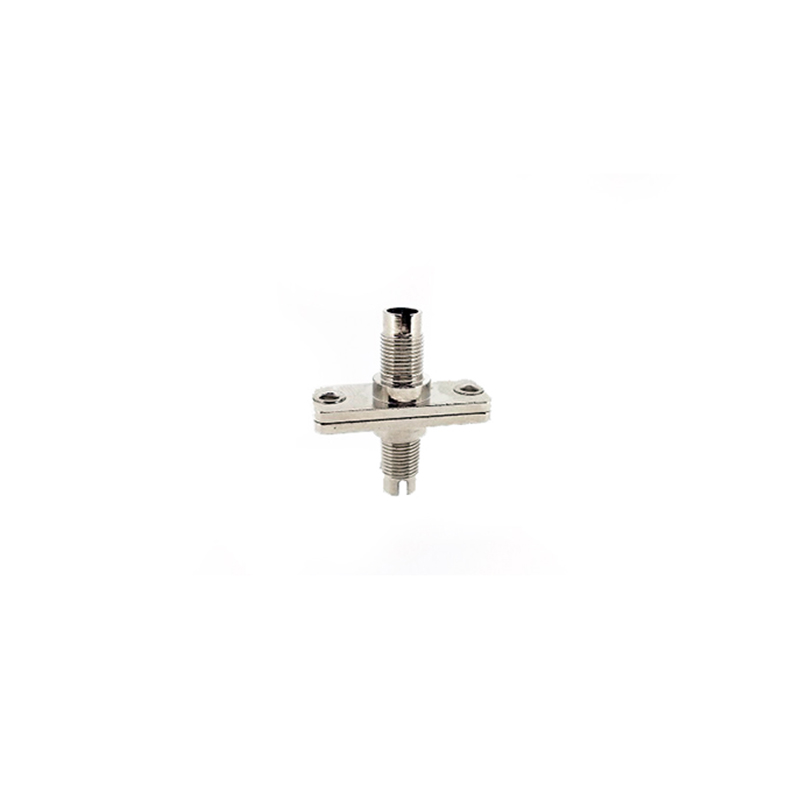

Din Simplex Fiber Optic Adapter



Features:


DIN 47256 compatibility Corrosion resistant housing
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy


Application:


Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
