E2000 APC Fiber Optic Adapter Simplex Singlemode Adapters

Product Name : E2000 APC Simplex Fiber Optical Adapter

Return Loss : SM APC≥60 dB,UPC≥50 dB;MM PC≥35 dB

Insertion Loss : ≤0.2dB

Durability(500 Mating) : 0.1dB Max.

Withdrawal Force(g/f) : 2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp(℃) : -40～+85

Inquiry Now Download

E2000 APC Simplex Fiber Optic Adapter



E2000 Fiber Optic Adapter are developed to couple and mate two E2000 connector plugs. The E2000 fiber optic adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter may be ordered with color coded housing and frames.


OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Products Materials:



Parts name

Material

Color

Housing body

PBT

SM APC:Green;SM UPC:Blue

MM PC: Beige;OM4 PC:Magenta

Sleeve

High precision Ceramic sleeve

White

Dust Cover

PBT

Green/Blue/Glack



E2000 Fiber Optic Adapter Specifications:



Test item

(SM-9/125) UPC

(SM-9/125) APC

MM PC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.2dB

Return Loss

≥50 dB

≥60 dB

≥35 dB

Durability (500 Mating)

0.1dB Max.

Withdrawal force (g/f)

2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp（℃）

-40～+85



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2,OM3,OM4 50/125



E2000 Fiber Optic Adapter Products Details:

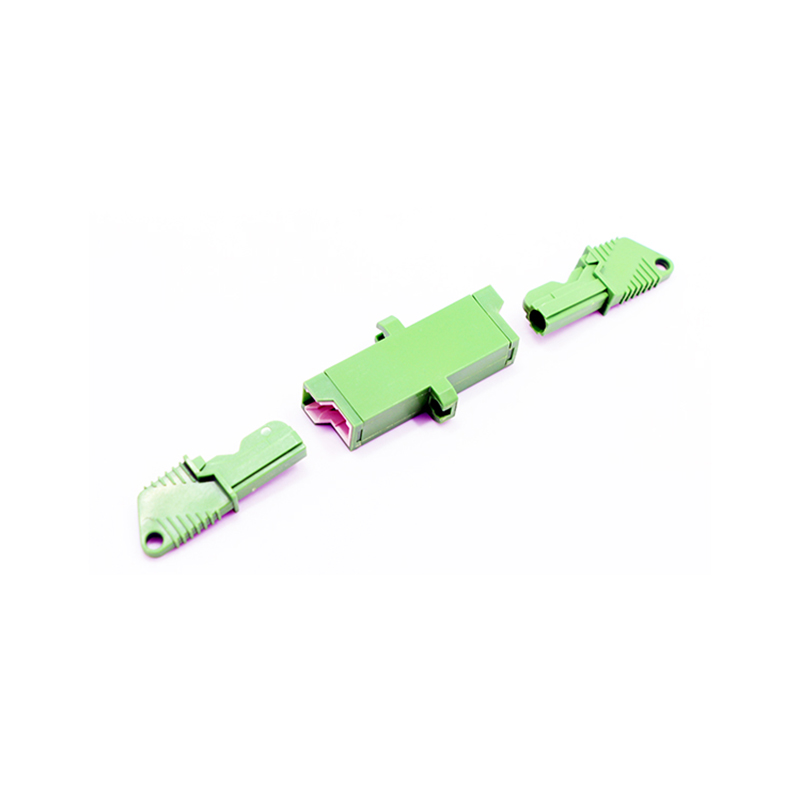

E2000 Fiber Optic Adapter



Features:


Compliant with European (EN 186270) and International (IEC 61754-15) standards.
Push-pull locking mechanism for easy installation
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy


Application:


Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
