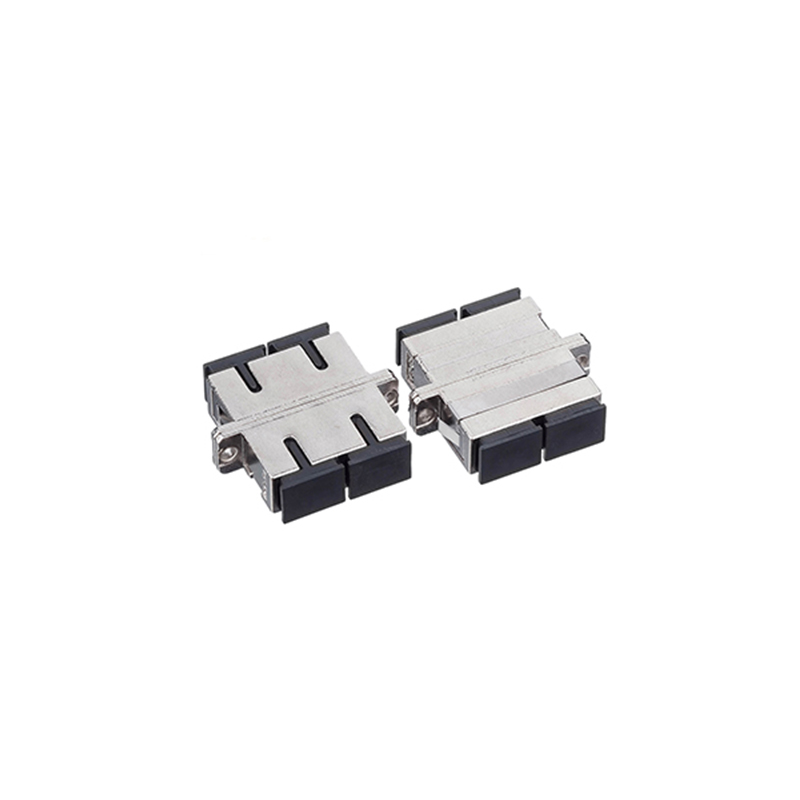

Fiber Optic Adapter SC Connector Duplex Metal Adapter

Product Name : SC Duplex Metal Fiber Optic Adapter

Return Loss : SM APC≥60 dB,UPC≥50 dB;MM PC≥35 dB

Insertion Loss : ≤0.2dB

Durability(500 Mating) : 0.1dB Max.

Withdrawal Force(g/f) : 2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp(℃) : -40～+85

Inquiry Now Download

Description

SC Duplex Metal Fiber Optic Adapter

SC Duplex Metal Fiber Optic Adapter are developed to couple and mate two SC connector plugs.Our range of high-quality SC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips. A protective cap is provided at each end of the adapter with the same color as the adapter

OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.

Features:

Complies with IEC 61754-4 standard
Available in Flanged and Flangeless options
Push-pull locking mechanism for easy installation
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy

sc duplex metal fiber adapter 1

SC Fiber Optic Adapter Specifications:

Test item	(SM-9/125) UPC	(SM-9/125) APC	MM PC
Insertion Loss	≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade);
Return Loss	≥50 dB	≥60 dB	≥35 dB
Durability (500 Mating)	0.1dB Max.
Withdrawal force(g/f)	2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp（℃）	-40～+85

SC Standard Fiber Adapter Material:

Parts name	Material	Color
Housing body	Nickel-plated brass or nickel-plated zinc	-
Sleeve	High precision Ceramic sleeve	White
Inside hook	PBT/PEI	Blue, Green, Beige
Metal Plate	Stainless steel	-
Dust Cover	PE/ABS	Blue/Black/Green or Customized

Environment and Mechanical:

Properties	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidity cycling	40ºC， 95%， 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB
