LC Duplex Adapters Inner Shutter Reduced Flange Fiber Optic Adapter

Product Name : LC Duplex Adapter With Inner Shutter - Reduced Flange

Return Loss : SM APC≥60 dB,UPC≥50 dB;MM PC≥35 dB

Insertion Loss : ≤0.2dB

Durability(500 Mating) : 0.1dB Max.

Withdrawal Force(g/f) : 2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp(℃) : -40～+85

Inquiry Now Download

LC Duplex Fiber Optic Adapter With Inner Shutter - Reduced Flange



LC Fiber Optic Adapter are developed to couple and mate 2/4/8 LC connector plugs. Each LC adapter has receptacles on both ends to connect LC patch cords together. It has stainless steel mounting clips allowing it to be easily snapped into rectangular cut outs for duplex SC mount.


Our range of high-quality LC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips.


OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Products Materials:



Parts name

Material

Color

Housing body

PC/PEI/Metal

Blue, Green, Beige, Aqua, Magenta or Customized

Sleeve

High precision Ceramic sleeve

White

Inside hook

PBT/PEI

Blue, Green, Beige, Aqua, Magenta or Customized

Metal Plate

Stainless steel

-

Dust Cover

PE/ABS

White or Customized



LC Duplex Fiber Optic Adapter - Reduced Flange Specifications:



Test item

(SM-9/125) UPC

(SM-9/125) APC

MM PC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.2dB

Return Loss

≥50 dB

≥60 dB

≥35 dB

Durability (500 Mating)

0.1dB Max.

Withdrawal force (g/f)

2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp（℃）

-40～+85



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2,OM3,OM4 50/125



Environment and Mechanical:



Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidity cycling

40ºC， 95%， 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



Products Details:

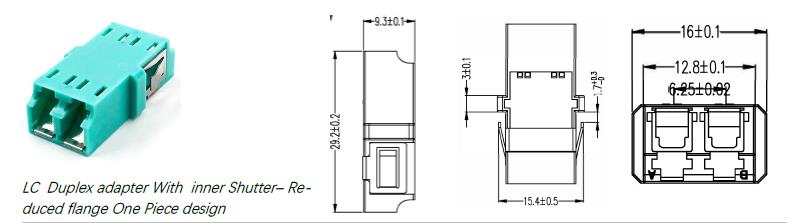

lc dx adapter with inner shutter - reduced flange



Features:


TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy



Application:


Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
