Fiber Optic Adapter Duplex MU Connector Adapters

Product Name : MU Duplex Fiber Optic Adapter

Return Loss : SM APC≥60 dB,UPC≥50 dB;MM PC≥35 dB

Insertion Loss : ≤0.2dB

Durability(500 Mating) : 0.1dB Max.

Withdrawal Force(g/f) : 2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp(℃) : -40～+85

Inquiry Now Download

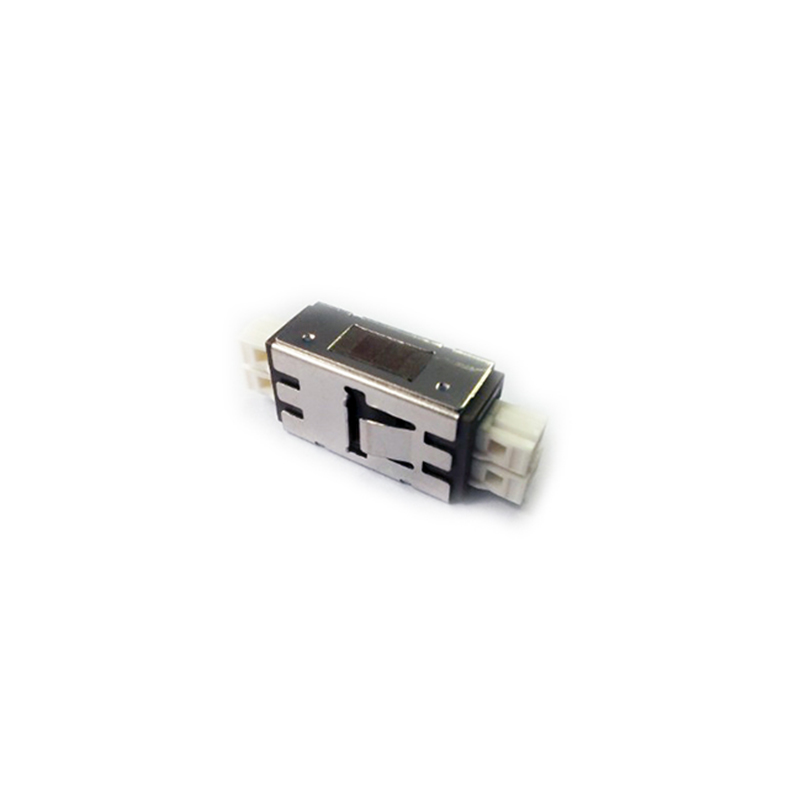

MU Duplex Fiber Optic Adapter



MU fiber optic adapter (also called MU couplers) are developed to couple and mate two MU connector plugs. MU adapters are approximately half the size of an SC coupler and utilize zirconia sleeves for precision alignment. These couplers are available in both simplex and duplex versions and mount into rectangular panel cutouts.


OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Products Materials:



Parts name

Material

Color

Housing body

PC

Brown

Sleeve

High precision Ceramic sleeve

White

Out jacket shell

Stainless Steel

-

Dust Cover

ABS

White



MU Duplex Fiber Optic Adapter Specifications:



Test item

(SM-9/125) UPC

(SM-9/125) APC

MM PC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.2dB

Return Loss

≥50 dB

≥60 dB

≥35 dB

Durability (500 Mating)

0.1dB Max.

Withdrawal force (g/f)

2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp（℃）

-40～+85



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125



MU Fiber Optical Adapter Products Details:



MU Duplex Fiber Optic Adapter



Features:


NTT-MU hardware compatibility
TIA-604 Compliant
Corrosion resistant housing
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy


Application:


Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
