Fiber Optic Adapter ST Duplex Metal Adapters

Product Name : ST Duplex Metal Fiber Optic Adapter

Return Loss : SM APC≥60 dB,UPC≥50 dB;MM PC≥35 dB

Insertion Loss : ≤0.2dB

Durability(500 Mating) : 0.1dB Max.

Withdrawal Force(g/f) : 2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp(℃) : -40～+85

Inquiry Now Download

ST Duplex Metal Fiber Optic Adapter



ST fiber optic adapters are developed to couple and mate two ST connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia split sleeve for high alignment.


OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Products Materials:



Parts name

Material

Color

Housing body

nickel-plated zinc

-

Sleeve

High precision Ceramic sleeve

-

Nut

Brass

-

Washer

Brass

-

Ring

Brass

-

Dust Cover

Rubber

Red/Black/Yellow



ST Duplex Metal Fiber Optic Adapter Specifications:



Test item

(SM-9/125) UPC

(SM-9/125) APC

MM PC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.2dB

Return Loss

≥50 dB

≥60 dB

≥35 dB

Durability (500 Mating)

0.1dB Max.

Withdrawal force (g/f)

2.0N ~ 5.9N (200gf ~ 600gf)

Storage Temp（℃）

-40～+85



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2,OM3,OM4 50/125



Standard ST Fiber Adapter Products Details:

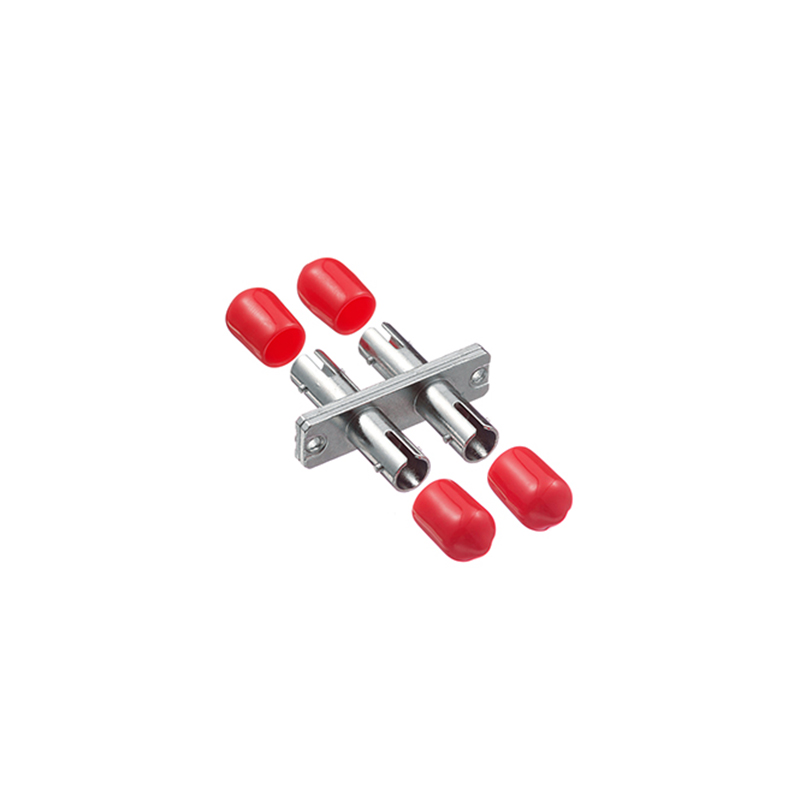

st duplex metal adapter



Features:


Corrosion resistant housing
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy


Application:


Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
